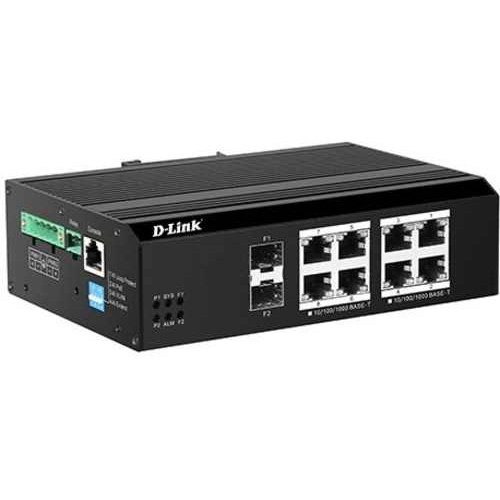

10-Port Gigabit Managed Industrial PoE Switch D-Link DIS-F2010PS-E

- Support 8 Gigabit PoE LAN ports with 2 SFP slot for high-speed wired connections.

- Support up to 250 meters PoE and Data transmission.

- Support 802.3af/at up to 30W per port.

- Layer 2 switch features.

- DIN-Rail or wall-mount installation.

- IP40 rated.

- -40°C to 75°C wide operating temperature.

- High EMC endurance.

- 6KV surge protection.

- Dual power input for backup.

Thông số kỹ thuật

General

Hardware Version A1

Number of Ports 8X 10/100/1000 Base-T ports

2X SFP ports

1 X RJ-45 Console Port

Port Functions IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab for Gigabit Ethernet

IEEE 802.3z for Gigabit fiber

IEEE 802.3af/at Power over Ethernet

IEEE 802.3az-compliant

Media Interface Exchange Auto-MDI/MDIX adjustment for all twisted pair ports

Performance

Switching Capacity 20Gbps

Maximum Forwarding Rate 14.88Mpps

MAC Address Table Size Up to 8K entries

Transmission Method Store-and-forward

PoE

PoE Standards IEEE 802.3af/at

PoE Capable Ports Ports 1 to 8 (Up to 250m)

PoE Power Budget Max 240W

Physical

Diagnostic LEDs SYS

ALM

PWR 1/2

Link/Activity/Speed

PoE Status

Power Input 48 to 56 VDC terminal block dual input

54 VDC 4-pin DIN single power input

Power Consumptions Maximum: 250 W (PoE on)

Maximum: 10 W (PoE off)

Weight 1kg

Dimensions 163 x 46.5 x 110 mm

Ventilation Fanless

Operating Temperature -40 to 75°C (-40 to 167°F)
