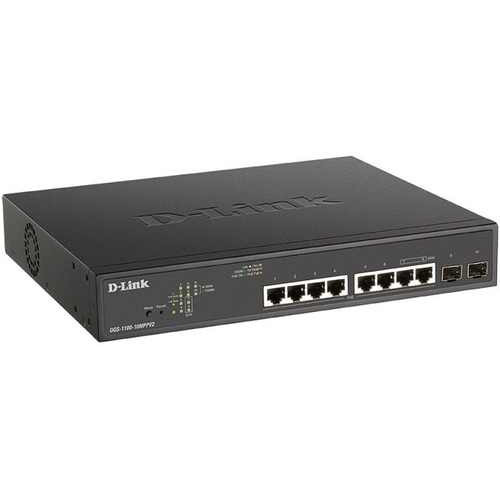

10-port Gigabit Smart Managed PoE Switch D-Link DGS-1100-10MPPV2

Physical

- 8 x 10/100/1000Base-T 802.3af/802.3at/802.3bt PoE

- 2 x 100/1000Mbps SFP

- Port 1-6 up-to 30W, Port 7-8 up-to 90W

Green Technology

- Link status detection

- IEEE 802.3az Energy-Efficient Ethernet compliant

- Time-based PoE

Advanced Features

- IGMP Snooping

- Bandwidth Control

- IEEE 802.1Q VLAN traffic segregation

- Port-based VLAN

- IEEE 802.1p Quality of Service

- Surveillance VLAN

- Voice VLAN

Management Features

- Client-based utility or web-based GUI

- Built-in SNMP MIB

Đặc tính kỹ thuật

Model DGS-1100-10MPPV2

General

Hardware Version A1

Size 11-inch desktop (rackmount kit included), 1U height

Number of Ports 8 x 10/100/1000Mbps (PoE)

2 x 100/1000Mbps SFP

Port Functions IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab for Gigabit Ethernet

IEEE 802.3af/at/bt

IEEE 802.3az compliant

Auto-negotiation

Auto MDI/MDIX

IEEE 802.3x Flow Control supports full-duplex mode

Supports half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps)

Performance

Switching Capacity 20 Gbps

Maximum Forwarding Rate 14.88 Mpps

MAC Address Table Size 8K entries
