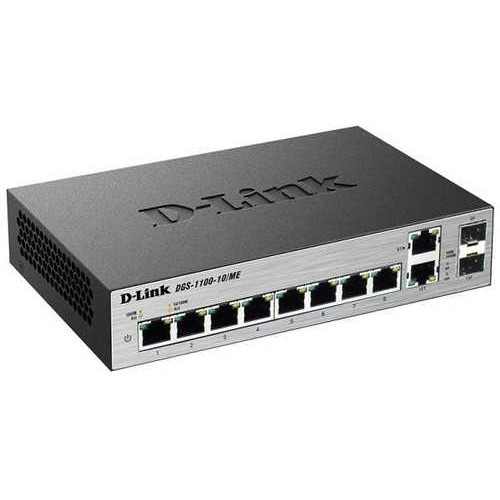

8-Port 1000Base-T Managed L2 Metro Ethernet Switch D-Link DGS-1100-10/ME

Physical

- Eight 10/100/1000 Mbps Ports

- Two combo 100/1000Mbps / SFP Ports

- Ethernet Port supports 6kV Surge Protection

Multicasting Features

- IGMP Snooping/MLD Snooping

- IGMP Authentication

- Limited IP Multicast

- Multicast VLAN

Authentication Authorization and Accounting (AAA)

- Port/Host-based 802.1X Access Control

- RADIUS/Local Authentication Database

Operations, Administration and Management (OAM)

- Cable Diagnostics

- IEEE 802.3ah

Management Features

- SNMP v1/v2c/v3

- RMON v1

- Link Layer Discovery Protocol (LLDP)

- DHCP Auto Configuration

- Neighbor Discovering

Specifications

Model DGS-1100-10/ME

General

Number of Ports Eight 10/100/1000BASE-TX ports

2 combo 100/1000Base-T/SFP ports

Standards IEEE 802.3 compliance

IEEE 802.3u compliance

IEEE 802.3ab compliance

IEEE 802.3x Flow Control

IEEE 802.3az compliance

Performance

Switching Capacity 20 Gbps

64-byte Maximum Forwarding Rate 14.88 Mbps (based on 64 Bytes)

MAC Address Table Size 8K Entries

DRAM for CPU 128 MB

Packet Buffer 4.1 Mbit

Flash Memory 16 MB
