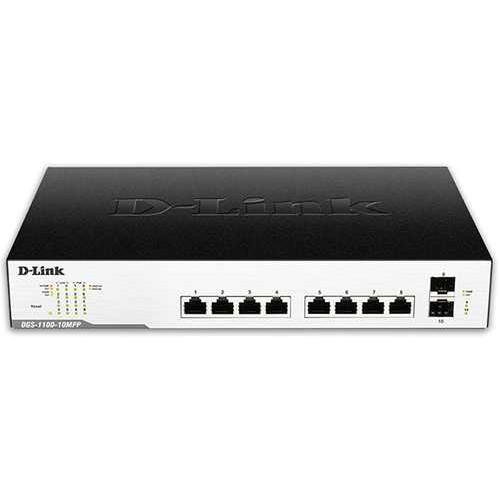

8-Port Gigabit EasySmart (Max) Managed PoE Switch D-Link DGS-1100-10MPP

-8-port UTP 802.3af PoE, 802.3at PoE+, 802.3bt draft uPoE 10/100/1000Mbps, 2-port Gigabit SFP (Port 1-6 Up-to 30W, Port7-8 Up-to 75W, Power Budget : 242W, EU 2 round pin+ UK 3-pin Power Cord, H/W : B1, Rackmountable).

-The world’s first PoE switch with ONVIF support specifically designed for Video Surveillance applications.

-This allows it to recognise ONVIF devices and integrate seamlessly with your surveillance network.

-With the surveillance optimised web interface, you can access real-time information on your surveillance network such as surveillance topology and device status, as well as PoE power and network bandwidth utilisation.

-Auto Surveillance VLAN (ASV) function ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data.

-The DGS-1100-10MPP offer high PoE power budget suitable for powering multiple network cameras.

-The 8-port DGS-1100-10MPP supports up to 30W on eight ports with a power budget of 130W, whereas the DGS-1100-10MPP provides 24 PoE-enabled ports, a power budget of 370W, and all PoE-enabled ports support up to 30W.

-The DGS-1100-10MPP supports up to 242W PoE power budget as well as 2 x 802.3bt/UPoE ports.

-The DGS-1100-10MPP supports an intuitive D-Link Network Assistant Utility and a web-based management interface.

-The D-Link Network Assistant Utility allows customers to discover all switches in the D-Link Smart Managed Switch family within the same L2 network segment.

Technical Specifications

Size 11-inch Desktop/Rackmount Size

Number of ports 8 10/100/1000 Mbps PoE - 2 SFP 1000 Mbps

Port Functions IEEE 802.3 compliant

IEEE 802.3u compliant

IEEE 802.3ab compliant

IEEE 802.3af/802.3at compliant

IEEE 802.3bt draft/UPoE (DGS-1100-10MPP/26MPP only)

IEEE 802.3x Flow Control supports full-duplex mode

PoE Standard IEEE 802.3af/802.3at

PoE Capable Ports Ports 1 to 8

PoE Power Budget 242 W

Power Consumption 10.47 W

Maximum Power Consumption 253 W (PoE on) - 14.6 W (PoE off)

MTBF 1.719.951 hours

Acoustics 53 dB(A)

Heat Dissipation 1001.12 BTU/hr

Weight 1.98 kg

Dimensions 280 x 180 x 44 mm

EMI FCC/IC, CE, VCCI, BSMI, CCC

Safety cUL, UL, LVD, CB, CCC, BSMI

VLAN Port-based VLAN

802.1Q Tagged VLAN

Auto Surveillance VLAN

Voice VLAN

Management VLAN

Asymmetric VLAN
