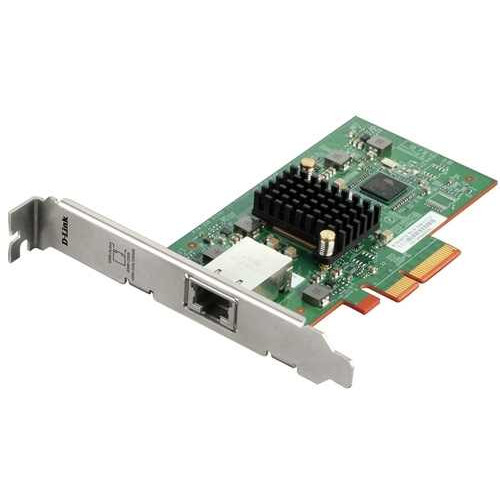

1-Port PCIe 10GBase-T Adapter D-Link DXE-810T

- The D-Link DXE-810T PCI Express 10 Gigabit Ethernet Adapter is a high performance adapter designed for the high-speed PCI Express bus architecture. The PCI Express 10 Gigabit Ethernet Adapter offers increased bandwidth, reliability, and more functionality than standard PCI network cards. It is specifically designed to allow throughput at rates up to 20 Gbps, eliminating the bottleneck that exists with current 32 and 64-bit PCI bus architectures.

Specifications

Model DXE-810T

Interface Single Port 10GBASE-T RJ-45

Standards IEEE 802.1Q VLAN tagging

IEEE 802.3x flow control

PCI Express x4 2.0, 5 GT/s compliant

IEEE 802.3an 10GBASE-T

IEEE 802.3ab 1000BASE-T

IEEE 802.3u 100BASE-TX

Transmit Distance 10GBASE-T

100M with Cat 6A or higher UTP

50M with Cat 6 UTP

100/1000BASE-T

100M with Cat 5 or higher UTP

Power Maximum Power Consumption: 8.04 W

Input Voltage: 3.3 V

Data Transfer Rate Auto mode (support 100 Mbps)

1 Gbps

10 Gbps

Network Operation Mode Full Duplex (20 Gbps)

Interface Slot PCI Express x4/x8/x16 slot

Supported Functions 16 KB Jumbo Frame

802.1Q VLAN tagging

Simple Network Management Protocol Agent

Dimensions 133.3 x 121.9 x 21.6 mm

Temperature 0° to 40°C

- Bảo hành 36 tháng.
