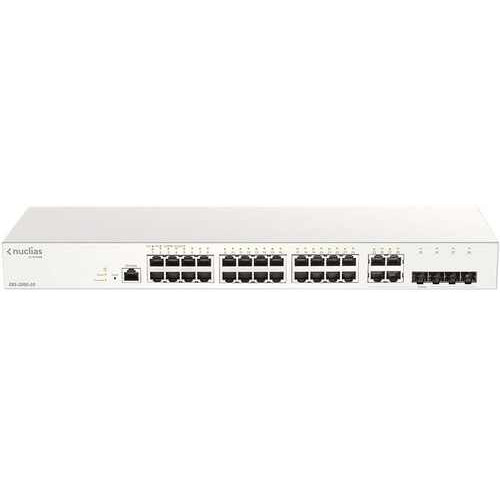

28-port Gigabit Smart Managed Nuclias Cloud Switch D-Link DBS-2000-28

Interfaces

- 24 x 10/100/1000 BASE-T

- 4 x 1000Mbps combo

D-Link Nuclias Cloud Management

- Centralized cloud-based management

- Zero-touch deployment

- Intuitive web and app-based interface

- Real-time at-a-glance network information

- Management of multiple sites and devices through a single pane of glass

- Over-the-air firmware updates through the cloud

- Instant alerts and notifications

Best-in-class Built for Enterprise Switches

- Energy-Efficient Ethernet (EEE)

- Supports 802.1D Spanning Tree (STP) and 802.1w Rapid Spanning Tree (RSTP)

- 802.3ad Link Aggregation

- Loopback protection and IGMP snooping

- Access Control Lists (ACLs)

Specifications

Model DBS-2000-28

Hardware Version A1

General

Number of Ports 24 x 10/100/1000 BASE-T

4 x 1000 Mbps combo

Port Functions IEEE 802.3 compliant

IEEE 802.3u/802.3z compliant

IEEE 802.3ab compliant

IEEE 802.3af/802.3at compliant

IEEE 802.3x Flow Control

Supports manual/auto MDI/MDIX configuration

Supports half/full-duplex operation

IEEE 802.3az compliant

Performance

Switching Capacity 56 Gbps

Maximum Forwarding Rate 41.7 Mpps

MAC Address Table Size 8K entries

Packet Buffer 4.1 MBits

Flash Memory 32 MB

Physical

Acoustic 0 dB(A)

Weight 2.15 kg

Dimensions 440 x 140 x 44 mm

Power Input 100 to 240 V AC, 50/60 Hz internal power supply
