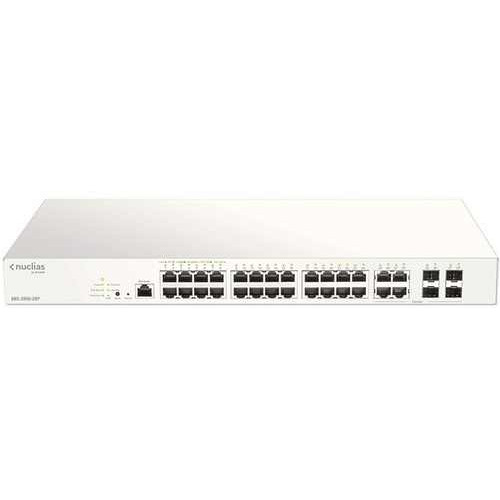

28-port Gigabit Smart Managed Nuclias Cloud PoE Switch D-Link DBS-2000-28P

- 24 x 10/100/1000BASE-T PoE ports

- 4 x 10/100/1000BASE-T ports

- 193W PoE power budget

- Supports IEEE 802.3at PoE

- Zero-Touch Deployment

- Cloud Management w/99.9% SLA

- WPA/WPA2/WPA3 Encryption

- Innovative D-Link Green Energy-saving features

- Intuitive Web Portal for comprehensive switch management

- Multilingual Support

Specifications

Model DBS-2000-28P

Hardware Version A1

General

Number of Ports 24 x 10/100/1000 BASE-T PoE

4 x 1000 Mbps combo

Port Functions IEEE 802.3 compliant

IEEE 802.3u/802.3z compliant

IEEE 802.3ab compliant

IEEE 802.3af/802.3at compliant

IEEE 802.3x Flow Control

Supports manual/auto MDI/MDIX configuration

Supports half/full-duplex operation

IEEE 802.3az compliant

Performance

Switching Capacity 56 Gbps

Maximum Forwarding Rate 41.7 Mpps

MAC Address Table Size 8K entries

Packet Buffer 4.1 MBits

Flash Memory 32 MB

PoE

PoE Standard IEEE 802.3af/at

PoE Capable Ports Ports 1 to 24

PoE Power Budget 193 W

Physical

Acoustic 51.7 dB(A)

Weight 3.75 kg

Dimensions 440 x 250 x 44 mm

Power Input 100 to 240 V AC, 50/60 Hz internal power supply

Maximum Power

Consumption 263.9 W (PoE on)

30.6 W (PoE off)

Heat Dissipation 900.36 BTU/hr

Ventilation 2 x Fans

Operating Temperature -5 to 50 °C (23 to 122 °F)

Storage Temperature -20 to 70 °C (-4 to 158 °F)

Operating Humidity 0% to 95% non-condensing
