Radio
802.11 a/b/g/n/ac; Wave 2
Concurrent Dual-band 2.4 & 5 GHz
Radio Chains : 2 x 2 : 2
RF Output Power*1 : 2.4 GHz : Up to 25 dBm*2; 5 GHz : Up to 21 dBm*2
( *1 : RF output power aggregates across MIMO chains and doesn’t contain antenna gain; *2 : Maximum power is limited by local regulatory requirements )
Frequency Band : 2.412 – 2.472 GHz , 5.180 – 5.825 GHz
Channelization : 20 MHz , 40 MHz , 80 MHz
Up to 16 ESSIDs per radio
QUALITY OF SERVICE
Bandwidth Management : Per User; WDS
Wireless QoS ( 802.11e / WMM )
DSCP ( 802.1p )
Airtime Fairness
Band Steering
Multicast to Unicast Conversion
Optimal Client Filtering
MANAGEMENT
Deployment : Standalone , Tunneled management by Edgecore EWS Gateway-Controller , IPv4 & IPv6 compatible , LLDP
Configuration : Web User Interface ( HTTP / HTTPS ) , SNMP v1 , v2c , v3
PHYSICAL DIMENSIONS
45.0 cm x 23.0 cm x 7 cm ( W x D x H )
Weight : 2.10 kg ( 4.63 lbs )
Mounting : Pole mount
POWER
DC input : 10-24V DC ( DC terminal block )
PoE : 802.3at compliant
Power Consumption : 27.1W max.
Environmental Conditions
Operating Temperature : -40°C ( -40°F ) to 65°C ( 149°F )
Operating Humidity : 10% to 95% non-condensing
IP68 Rating
Performance
Up to 400 Mbps ( 2.4 GHz )
Up to 866 Mbps ( 5 GHz )
Up to 256 Concurrent Users
MOBILITY / ROAMING
Layer 2 / Layer 3 Fast Roaming
Hotspot 2.0
Security
Wireless Security : WEP , WPA / WPA2 Mixed ( TKIP/AES Mixed ) , WPA2-Personal ( AES ) , WPA2-Enterprise ( AES )
VLAN Tagging ( 802.1Q )
Station Isolation
DHCP Snooping
Layer 2 Firewall
Operating Modes
AP Mode , WDS Mode
Interfaces
Uplink ( PoE In ) : 1 x 10/100/1000Base-T Ethernet , Auto MDIX , RJ-45 with 802.3at PoE
LAN ( PoE Out ) : 1 x 10/100/1000Base-T Ethernet , Auto MDIX , RJ-45 with 802.3af PoE
Console : RJ-45
Antenna
Option 1 : Built-in 2.4GHz Omni , 5GHz Directional with Azimuth 30° & Elevation 20°
Option 2 : Built-in 2.4GHz Directional with Azimuth 130° & Elevation 30° , 5GHz Directional with Azimuth 90° & Elevation 30°
1 x Built-in Omni ( BLE )
1 x Built-in GPS/GLONASS ( GPS )
2 x External N-type Female Connectors on OAP100 ( LTE )
Certifications
FCC ( United States ) , CE ( Europe ) , NCC&BSMI ( Taiwan )

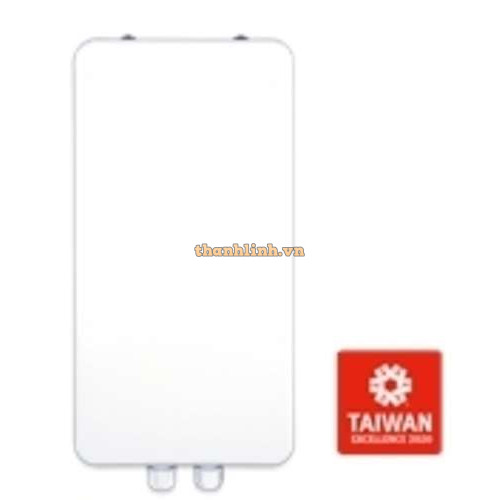

Bộ phát Wifi Wireless Access Point Edgecore OAP100
- Thương hiệu: EDGECORE
- Mã số sản phẩm: OAP100
- Tình trạng kho: Xin liên hệ
-
Xin liên hệ
