Radio
802.11 a/b/g/n/ac : Wave 2
Concurrent Dual-band 2.4 & 5 GHz
Radio Chains : 2 x 2 : 2
RF Output Power*1 : 2.4 GHz : Up to 23 dBm*2; 5 GHz : Up to 23 dBm*2
( *1 : RF output power aggregates across MIMO chains and doesn’t contain antenna gain; *2 : Maximum power is limited by local regulatory requirements )
Frequency Band : 2.412 – 2.472 GHz , 5.180 – 5.825 GHz
Channelization : 20 MHz , 40 MHz , 80 MHz
Up to 16 ESSIDs per radio
QUALITY OF SERVICE
Wireless QoS ( 802.11e / WMM )
DSCP ( 802.1p )
Airtime Fairness
Band Steering
Multicast to Unicast Conversion
Optimal Client Filtering
MANAGEMENT
Deployment : Standalone , Tunneled management by Edgecore EWS Gateway-Controller , IPv4 & IPv6 compatible , LLDP
Configuration : Web User Interface ( HTTP / HTTPS ) , SNMP v1 , v2c , v3
PHYSICAL DIMENSIONS
25.0 cm x 20.0 cm x 8.0 cm ( W x D x H )
Weight : 1.53 kg ( 3.28 lbs ) including antennas
Mounting : Pole/wall mount , Mounting kit included
POWER
PoE : 802.3at compliant , PoE injector optional
Power Consumption : 20W max.
Environmental Conditions
Operating Temperature : -40°C ( -40°F ) to 65°C ( 149°F )
Operating Humidity : 10% to 95% non-condensing
IP68 Rating
Performance
Up to 1.2 Gbps Data Rate
Up to 256 Concurrent Users
MOBILITY / ROAMING
Layer 2 / Layer 3 Fast Roaming
Hotspot 2.0
Security
Wireless Security : WEP , WPA / WPA2 Mixed ( TKIP/AES Mixed ) , WPA2-Personal ( AES ) , WPA2-Enterprise ( AES )
VLAN Tagging ( 802.1Q )
Station Isolation
DHCP Snooping
Layer 2 Firewall
Operating Modes
AP Mode , WDS Mode
Interfaces
LAN1 : 1 x 10/100/1000Base-T Ethernet , Auto MDIX , RJ-45 with 802.3at PoE
LAN2 : 1 x 10/100/1000Base-T Ethernet , Auto MDIX , RJ-45
Antenna
Type : 4 x External N-type Connectors ( 2 x 2.4 GHz , 2 x 5 GHz ) , 1 x Built-in PIFA ( 1 x BLE ) , 1 x Built-in Patch ( 1 x GPS ) Gain : 5 dBi ( 2.4 GHz ) , 7 dBi ( 5 GHz ) , 2 dBi ( BLE )
Certifications
FCC ( United States; DFS not certified ) , CE ( Europe ) , NCC & BSMI ( Taiwan )
OSS Component name : Linux Kernel
License notification : GPL/LGPL are available*
*If there is any question , please contact our support team at ecwifi@edge-core.com

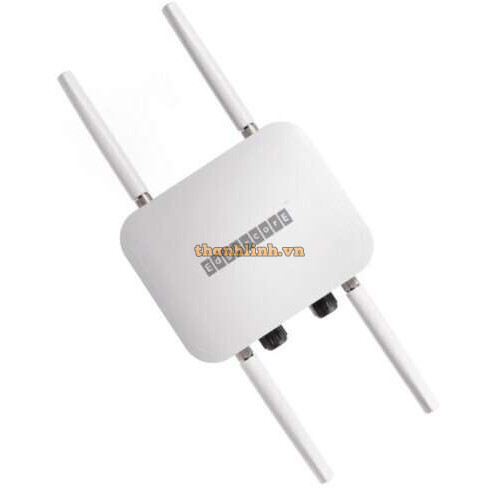

Bộ phát Wifi Concurrent Dual-Band 802.11ac Wave 2 Outdoor Access Point Edgecore ECWO5211-L
- Thương hiệu: EDGECORE
- Mã số sản phẩm: ECWO5211-L
- Tình trạng kho: Xin liên hệ
-
Xin liên hệ
