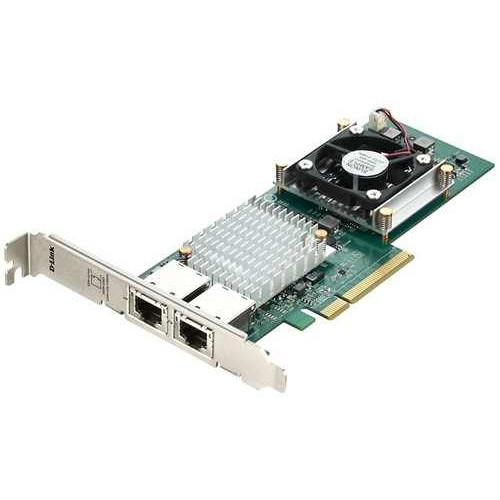

2-Port PCIe 10GBase-T Adapter D-Link DXE-820T

- The D-Link DXE-820T Dual Port 10GBASE-T RJ-45 PCI Express Adapter is a high performance adapter designed for the high-speed PCI Express bus architecture. The Dual Port 10GBASE-T RJ-45 PCI Express Adapter offers increased bandwidth, reliability, and more functionality than standard PCI network cards. It is specifically designed to allow throughput at rates up to 40 Gbps, thus eliminating the bottleneck that exists with current 32 and 64-bit PCI bus architectures.

Specifications

Model DXE-820T

Standards IEEE 802.1Q VLAN tagging

IEEE 802.3x flow control

IEEE 802.3an 10GBASE-T

IEEE 802.3ab 1000BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3ad teaming

PCI Express x8 2.0, 5 GT/s compliant

Power Maximum Power Consumption: 23.38W

Input Voltage: 3.3V and 12V

Data Transfer Rate 1 Gbps Full Duplex

10 Gbps Full Duplex

Auto mode (support 100 Mbps)

Transmit Distance 10GBASE-T

- 100M with Cat 6A or higher UTP

- 50M with Cat 6 UTP

100/1000BASE-T

- 100M with Cat 5 or higher UTP

Interface Slot PCI Express v2.0 x8/x16 slot

Includes standard and low profile brackets

Driver Support Windows Server 2008 (x86, x64)/2008 R2 (x64)

Windows Server 2012

RHEL 6.4/6.5 (x64), RHEL 5.9 (x64)

SLES 11.2/11.3 (x64)

Solaris 11/11.1

Dimensions 181 x 120.9 x 21.6 mm

Temperature 0 ~ 40°C

- Bảo hành 36 tháng.
