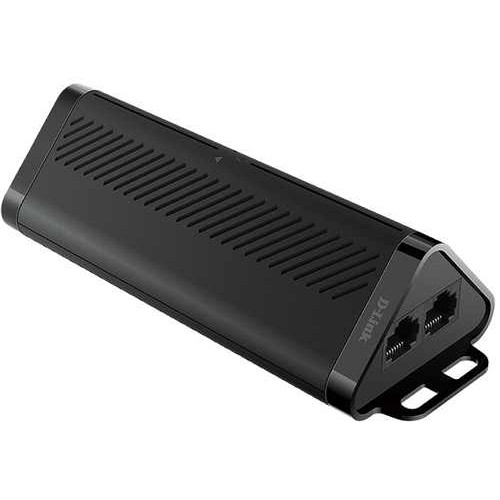

2-port Gigabit PoE Extender D-Link DPE-302GE

-The DPE-302GE 2-Port Gigabit PoE Extender allows a Gigabit Power-over-Ethernet connection to be extended up to 500 m.

-It is designed to supply data and PoE power to devices such as PTZ IP cameras or 802.11ac wireless access points over extended distances.

-With several mounting options, the DPE-302GE allows PoE devices to be deployed virtually anywhere over longer distances, eliminating the need for a nearby power outlet and attached power supply.

Simplicity

-Plug-and-play with no software required.

-Multiple mounting options for flexible placement.

-Provides power over existing network cabling to remote PoE-capable devices.

-Lightweight and compact.

-One PoE input port to dual output ports.

-Three arrow LEDs to indicate the direction of the power and data flow.

Gigabit Connectivity

-Deliver PoE (+) power over 10/100/1000 Mbps connections up to a 500 m1.

-Connect and power Gigabit devices.

-Auto-negotiation on Ethernet ports.

-Full-rate network throughput.

Reliability

-Compliant with IEEE 802.3af (PoE) and IEEE 802.3at (PoE+).

-Compatible with all standard PoE devices.

-Regulates power output to avoid damaging the connected device.

-Withstands operating temperatures of up to 60°C.

-Built-in 4 kV surge protection.

Technical Specifications

PoE + Data Ports (IN) 1 x 10/100/1000BASE-T RJ45 port

Supports half/full-duplex

PoE + Data Ports (OUT) 2 x 10/100/1000BASE-T RJ45 port

Supports half/full-duplex

Standards IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3af

IEEE 802.3at

IEEE 802.3x Flow Contro

Indicator LEDs (Per Unit) 1 x PoE In

2 x PoE Out

Solid blue: PoE connected

Blinking blue: PoE budget overload

Dimensions 155 x 60 x 40 mm
