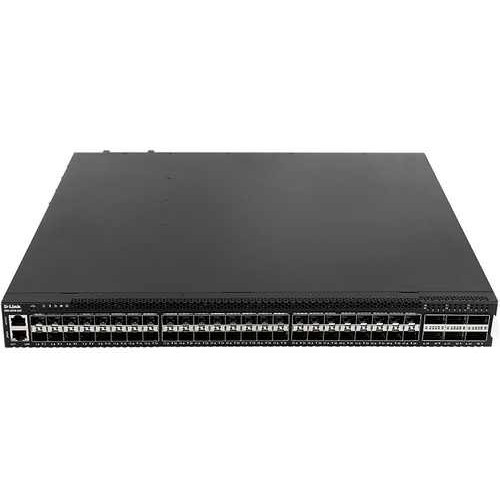

54-Port Layer 3 Stackable 10G Managed Switch D-Link DXS-3610-54S

Interfaces

- 48 x 1/10GbE SFP/SFP+ ports

- 6 x 40/100GbE QSFP+/QSFP28 ports

High Performance and Flexibility

- Two AC/DC hot-swappable power modules for 1+1 power redundancy and load sharing

- Hot-swappable fan trays with front-to-back airflow and N+1 cooling redundancy

- Up to 1200G stacking bandwidth with twelve devices functioning together as a single unit

Data Center Features

- IEEE 802.1Qbb Priority-based Flow Control (PFC)

Advanced Features

- MPLS

- ERPS (G.8032 v1/v2)

- OpenFlow v1.3

OAM

- IEEE 802.3ah Ethernet link OAM

- IEEE 802.1ag

- ITU-T Y.1731

Accessible Management

- Web-based GUI, Command Line Interface (CLI)

Specifications

Model DXS-3610-54S

Interface

Ports 48 x 1/10GbE SFP/SFP+ ports

6 x 40/100GbE QSFP+/QSFP28 ports

Console Port RJ-45 console port for out-of-band management

Management Port 10/100/1000 BASE-T RJ-45 Ethernet for out-of-band remote management

Alarm Port 1 x RJ-45 port

Stacking Cost 2

USB Ports 1 x USB 2.0 Type A port

Performance

Switching Capacity 2.16 Tbps

Max. Forwarding Rate 1607.04 Mpps

Packet Buffer 32 MB

MAC Address Table Up to 288K

IPv4 Routing Table Up to 32K

IPv6 Routing Table Up to 16K

IPv6 Forwarding Table Up to 144k

Jumbo Frame Size 9436 bytes

Physical

Acoustic Max: 79.4 dB(A)

Min: 65.3 dB(A)
