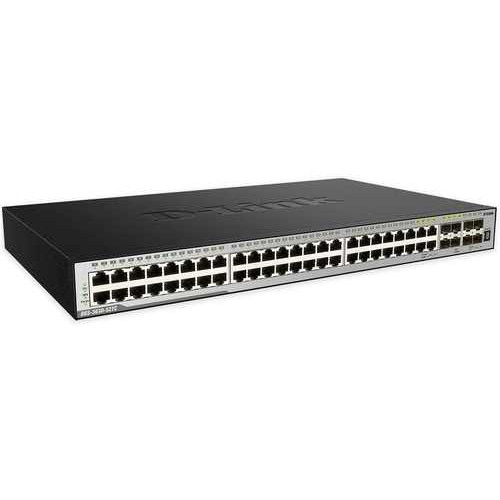

52-Port Layer 3 Stackable Managed Gigabit Switch D-Link DGS-3630-52TC

High Availability and Flexibility

- 44 10/100/1000BASE-T Ports

- 4 Combo 10/100/1000BASE-T/SFP ports

- 4 10-Gigabit SFP+ uplink ports

- Switch Resource Management (SRM) for flexible management of system resources

- 6 kV surge protection on all RJ45 access ports

Reliability

- Redundant Power Supply (RPS) support

- IEEE 802.1D/802.1w/802.1s Spanning Tree

- Loopback Detection (LBD)

- Ethernet Ring Protection Switching (ERPS)

High Bandwidth Stacking

- Physical stacking up to 9 units, 432 GbE ports

- Supports long-distance stacking over fiber

- 80 Gbps per device physical stacking bandwidth

Operations, Administration and Maintenance

- IEEE 802.3ah Ethernet First Mile (EFM)

- IEEE 802.1ag/ITU-T Y.1731 OAM

Easy Management

- RJ45/mini-USB console port

- Management and alarm ports

- USB port for firmware and configuration files

- Easy-to-use web GUI

- Industry standard CLI

Specifications

Model DGS-3630-52TC

Interfaces

10/100/1000BASE-T Ports 44

Combo Ports (10/100/1000BASE-T or SFP) 4

10 Gigabit SFP+ Ports 4

Console Port RJ45 and Mini USB console ports for out-of-band CLI management

Management Port 10/100/1000BASE-T RJ45 Ethernet for out-of-band IP management

Alarm Port RJ45

USB Port USB 2.0 Type A

Optional Redundant Power Supply DPS-500A

Performance
