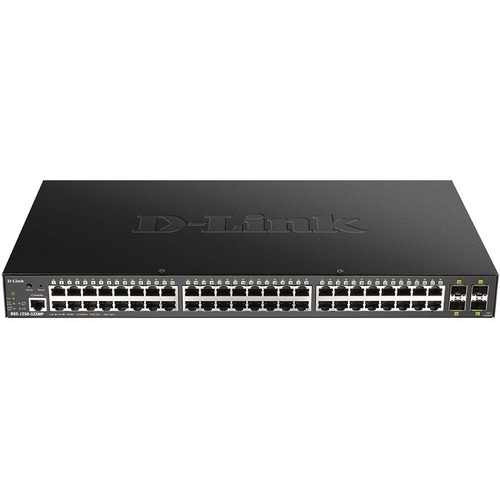

52-Port Gigabit Smart Managed PoE Switch D-Link DGS-1250-52XMP

- 48 x 10/100/1000BASE-T PoE ports

- 4 x 10G SFP+ ports for choosing the most suitable media type for your requirement

- Lite L3 Static Routing for increased network efficiency

- Advanced security features such as Access Control List, IMPB, 802.1X Authentication to enhance network security and protect the internet IT network

- 370W PoE Power Budget (802.3af/at) to allow more power for connected devices

- Dual Image & Configuration for reduced downtime

- Supports STP/RSTP/MSTP to maintain the quality of network

- Full CLI for for easy management

- QoS Enablement for performance improvement of critical network traffic

- 11 Web Languages for management flexiblity

Specifications

Model DGS-1250-52XMP

General

Hardware Version A1

Number of Ports 48 x 10/100/1000BASE-T PoE

4 x 10G SFP+ ports

Port Standards IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic

IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)

IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic

IEEE 802.3az Energy-Efficient Ethernet (EEE)

IEEE 802.3x Flow Control

IEEE 802.3ae 10 Gigabit Ethernet

IEEE 802.3af/at

Network Cables UTP Cat. 5, Cat. 5e (100 m max.)

Duplex Mode Full/Half-duplex for 10/100 Mbps

Full-duplex for 1000 Mbps

Media Interface Exchange Auto MDI/MDIX adjustment for all twisted-pair ports

Performance

Switching Capacity 176 Gbps

Transmission Method Store-and-forward

Maximum 64 Byte

Packet Forwarding Rate 130.95 Mpps

MAC Address Table 32K entries

Static MAC Addresses 256 entries

Packet Buffer 16 Mbits

CPU Memory 2G DDR3

Flash Memory 64 MB

PoE

PoE Standard IEEE 802.3af/at

PoE Capable Ports 48

PoE Power Budget 370 W

15.4 W per port

LEDs
