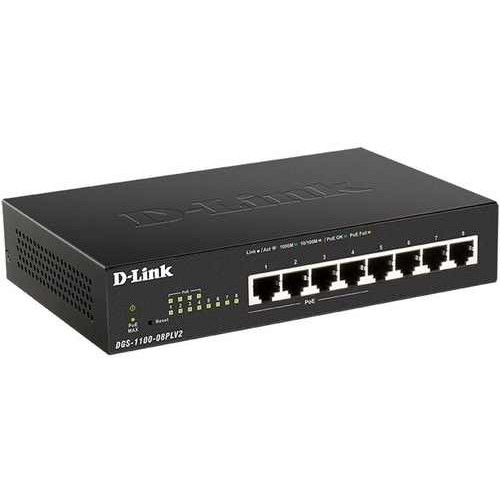

8-Port Gigabit Smart Managed PoE Switch D-Link DGS-1100-08PLV2

- 8 x 10/100/1000BASE-T ports with 4 x PoE+ ports

- PoE+ support with up to 30W per port

- 80W PoE Power Budget

- Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs

- Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery

- Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security

- IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic

- Innovative energy saving features are good for your budget, as well as the environment

- Get up and going quickly with streamlined first-time setup and ongoing management

Specifications

Model DGS-1100-08PLV2

Interface

Hardware Version A1

Size Desktop

Number of Ports 4 x 10/100/1000Mbps PoE

4 x 10/100/1000 Mbps

Port Functions IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab for Gigabit Ethernet

IEEE 802.3at

Auto-negotiation

Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps)

Auto MDI/MDIX

IEEE 802.3x Flow Control supports full-duplex mode

IEEE 802.3az compliant

Performance

Switching Capacity 16 Gbps

Max. Forwarding Rate 11.9 Mpps

MAC Address Table 4K entries

Packet Buffer 1.5 Mbits

Flash Memory 2 Mbytes

PoE

PoE Standard IEEE 802.3af/802.3at

PoE Capable Ports Ports 1 to 4

PoE Power Budget 80 W

30W per PoE port max

Physical

Acoustic 0 dB(A)

Power Input 100 to 240 V AC, 50 to 60 Hz external power adapter

Maximum Power

Consumption 83.5 W (PoE on)

3.5 W (PoE off)

Ventilation Fanless

Dimensions 190 x120 x 38 mm

Weight 0.60 kg

Operating Temperature 0 to 40 ˚C

Storage Temperature -40 to 70 ˚C
