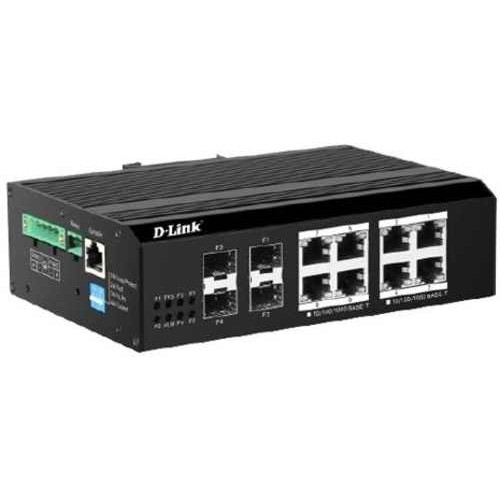

8-port Layer 2 Gigabit Industrial PoE Switch D-Link DIS-F2012PS-E

- 8 Gigabit PoE LAN ports with 4 SFP slot for high-speed wired connections

- Support up to 250 meters PoE and Data transmission

- Support 802.3af/at up to 30W per port

- Layer 2 switch features

- DIN-Rail or wall-mount installation

- IP40 rated

- -40°C to 75°C wide operating temperature

- High EMC endurance

- 6KV surge protection

- Dual power input for backup

Specifications

Model DIS-F2012PS-E

Interfaces

Number of Ports 8 x 10/100/1000 Base-T ports

4 x SFP ports

1 x RJ-45 Console Port

Port Functions IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab for Gigabit Ethernet

IEEE 802.3z for Gigabit fiber

IEEE 802.3af/at Power over Ethernet

IEEE 802.3az-compliant

Media Interface Exchange Auto-MDI/MDIX adjustment for all twisted pair ports

Performance

Switching Capacity 24 Gbps

Max. Forwarding Rate 17.85 Mpps

MAC Address Table Size Up to 8K entries

Transmission Method Store-and-forward

PoE

PoE Standards IEEE 802.3af/at

PoE Capable Ports Ports 1 to 8 (Up to 250m)

PoE Power Budget Max. 240W

Physical

Power input 48 to 54 V DC terminal block dual input

54 V DC 4-pin DIN single power input

Power Consumption Maximum: 250 W (PoE on)

Maximum: 10 W (PoE off)

Heat Dissipation 25.37 BTU/hr

Dimensions (W x D x H) 163 x 46.5 x 110 mm

Weight 1 kg

Ventilation Fanless

Operating Temperature -40 to 75 °C

Storage Temperature -40 to 75 °C

Operating Humidity 5% to 95% RH, non-condensing

Storage Humidity 5% to 95% RH, non-condensing

Installation DIN rail/wall
