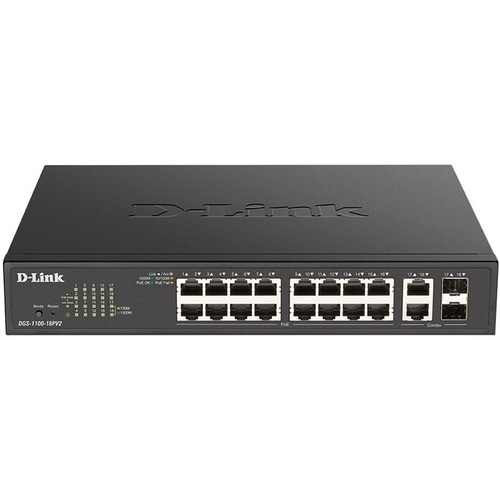

18-Port Gigabit Smart Managed PoE Switch D-Link DGS-1100-18PV2

- 16 x 10/100/1000BASE-T PoE+ ports

- 2x RJ45/SFP Combo ports

- PoE+ support with up to 30W per port

- 130 Watts PoE Power Budget

- Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs

- Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery

- Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security

- IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic

- Innovative energy saving features are good for your budget, as well as the environment

- Get up and going quickly with streamlined first-time setup and ongoing management

Đặc tính kỹ thuật

Model DGS-1100-18PV2

General

Hardware Version A1

Size 11-inch desktop (rack mount included), 1U height

Number of Ports 16 x 10/100/1000Mbps (PoE)

2 x Combo GE/SFP

Port Functions IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab for Gigabit Ethernet

IEEE 802.3af/at/bt

IEEE 802.3az compliant

Auto-negotiation

Auto MDI/MDIX

IEEE 802.3x Flow Control supports full-duplex mode

Supports half/full-duplex operation (full/half at 10/100Mbps, full at 1000 Mbps)

Performance

Switching Capacity 36 Gbps

Maximum Forwarding Rate 26.78 Mpps

MAC Address Table Size 8K entries

Packet Buffer 4.1 Mbits

Flash Memory 16 Mbytes

PoE

PoE Standard IEEE 802.3af/at

PoE Capable Ports Ports 1 to 16

PoE Power Budget 130W

Power Consumption

Standby Mode 10W

Maximum Power Consumption 166.7 W (PoE on)

18.3 W (PoE off)

Physical

Power Input 100 to 240 VAC, 50 to 60 Hz Internal Power Supply

MTBF 343,695 hours

Acoustics 45.8 dB(A) (fixed speed)

Heat Dissipation 125.2 BTU/hr

Weight 2.1 kg
