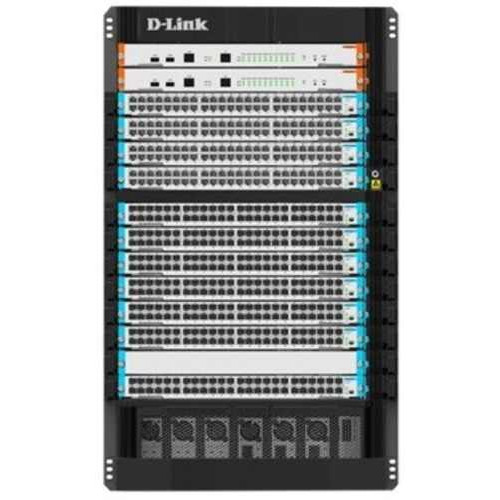

Data Center Chassis Switch D-Link DES-9514

- Switching capacity: 11.52 Tbps

- Packet Forwarding Rate: 8571 Mpps

- Total number of slots: 18

- Number of MCU slots: 2

- Number of SFU slots: 4

- Service card slot number: 12

- Characteristics of Data Centers supporting VSS technology

- Supports VLAN: 4K VLAN entries, GVRP, 1: 1 and N: 1 VLAN Mapping, Basic QinQ and selective QinQ

- Private VLAN

- Supports STP: 1D (STP), 802.1W (RSTP), 802.1S (MSTP), BPDU protection, root protection and ring protection

- Supports Multicast technology: IGMP v1 / v2 / v3, IGMP Snooping, IGMP Fast Leave, Multicast group policy and multicast number limit, Multicast traffic cross VLAN duplication, PIM-SM and PIM-DM

Specifications

Model DES-9514

Switching Capacity 11.52Tbps

Packet forwarding rate 8571Mpps

Number of Slots 18

MPU slots 2

MSU Slots 4

Service card slots 12

Data Center

Characteristics VSS

MAC Static configuration and dynamically learning of MAC address

Check and delete MAC address

Configuring of MAC address aging time

Limit on MAC address learning number

MAC address filtering function

Black-hole MAC items

VLAN 4K VLAN entries

GVRP

1:1 and N:1 VLAN Mapping

Basic QinQ and selective QinQ

Private VLAN

STP 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

BPDU protection, root protection and ring protection

Multicast IGMP v1/v2/v3

IGMP Snooping

IGMP Fast Leave

Multicast group policy and multicast number limit

Multicast traffic cross VLAN duplication

PIM-SM and PIM-DM

IPv4 Static routing, RIP v1/v2, OSPF and BGP

Policy routing.

Load balance through equal-cost routing

Graceful Restart of OSPF and BGP

BFD for OSPF and BGP
