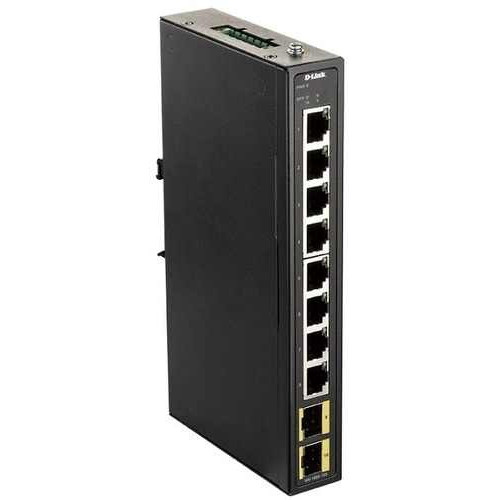

10-port Gigabit Unmanaged Industrial Switch D-Link DIS-100G-10S

Adaptable Applications

- 8 x 10/100/1000BASE-T ports

- 2 x SFP port

- SFP ports for long distance connections

- Plug-and-play installation

- Din-rail mounting

Robust and High-Redundancy Design

- Fanless, passive cooling design

- Industrial grade operating temperature

- High EMS endurance

- Ingress protection

- Dual power input for redundant power supplies

- Built-in 6 kV surge protection on copper ports

Advanced Features

- 9 KB Jumbo Frame

- IEEE 802.3x Flow Control

- IEEE 802.1q Quality of Service (QoS)

- IEEE802.3az Energy Efficient Ethernet

Specifications

Model DIS-100G-10S

Interfaces

Number of Ports 8 x 10/100/1000BASE-T ports

2 x SFP port

Port Functions IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab for Gigabit Ethernet

IEEE 802.3x Flow Control

IEEE 802.3az Energy-Efficient Ethernet (EEE)

Media Interface Exchange Auto-MDI/MDIX adjustment for all twisted pair ports

Performance

Switching Capacity 20 Gbps

Max. Forwarding Rate 14.88 Mpps

MAC Address Table Size Up to 4K entries

Transmission Method Store-and-forward

Jumbo Frame 9.6 KB

Advanced Features IEEE 802.1p Quality of Service (QoS) - 8 hardware queues per port

Physical

Diagnostic LEDs PWR, SFP, Link/Activity

Power input 12 to 48 VDC terminal block dual input

Power Consumption Maximum: 7.44 W

Standby: 2.64 W
