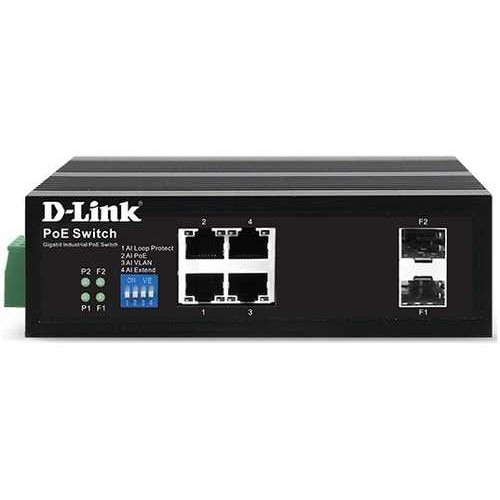

4-Port Gigabit PoE + 2-Port Gigabit SFP Industrial Unmanaged Switch D-Link DIS-F1006PS-E

- Support 4-port Gigabit PoE Ports and 2 port Gigabit SFP Ports.

- IP40 Level Protection.

- Support up to 250m PoE.

- Support PoE Product Recovery function.

- Dual Power Input for redundant power supplies.

- Fanless, Passive Cooling design.

- Plug and Play Installation.

Thông số kỹ thuật

General

Chip Broadcom high performance chip

Number of Ports RJ45 port: 4x 10/100/1000Base Tx RJ45 ports

Optical port: 2x 1000Base-X (SFP)

Port Functions IEEE 802.3: for Ethernet Media Access Control

IEEE 802.3u: for Fast Ethernet

IEEE 802.3ab: for Gigabit Ethernet

IEEE 802.3z: for Gigabit Fiber

IEEE 802.3af/at: for Power Over Ethernet

IEEE 802.3i: for Ethernet

Performance

Switching Capacity 12Gbps

Maximum Forwarding Rate 8.9Mbps

MAC Address Table Size Up to 8K entries

Transmission Method Store-and-Forward

PoE

PoE Standards IEEE 802.3af/at

PoE Capable ports Port 1 to 4

PoE Power Budget Max 120W

Physical

Diagnostic LED's SYS

ALM

PWR 1/2

Link/Act

PoE Status

Power Input 48 to 54 V DC terminal block dual input

54 V DC 4-pin DIN single power output

Power Consumption Maximum 120W (PoE on)

Maximum 5W (PoE off)

Weight 1kg

Dimensions 163mm × 46.5mm × 110mm

Ventilation Fanless

Operating Temperature -40~75℃ (-40 to 167 °F)

Storage Temperature -40~75℃ (-40 to 167 °F)

Relative Humidity 5%～95% (no condensation)

Material IP40 rated metal casing

Installation DIN rail mounting

MTBF 100000 hours

Bảo hành: 36 tháng.
