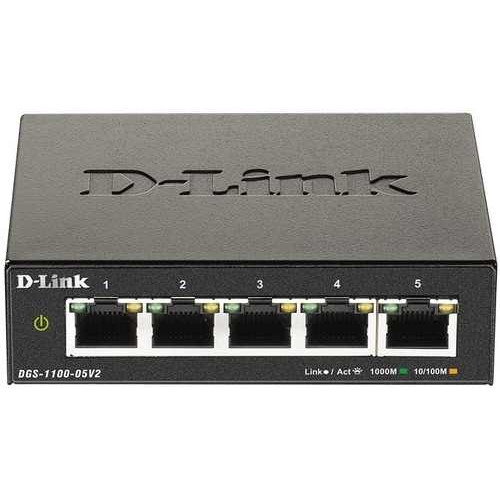

5-Port Gigabit Smart Managed Switch D-Link DGS-1100-05V2

- 5 x 10/100/1000BASE-T ports

- Compact design for convenient placement

- Fanless design for silent operation

- Innovative D-Link Green energy saving features

- Complete web interface for comprehensive switch management

Specifications

Model DGS-1100-05V2

Interface

Hardware Version A1

Size Desktop

Number of Ports 5 x 10/100/1000 Mbps

Port Functions IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab for Gigabit Ethernet

Auto-negotiation

Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps)

Auto MDI/MDIX

IEEE 802.3x Flow Control supports full-duplex mode

IEEE 802.3az compliant

Performance

Switching Capacity 10 Gbps

Max. Forwarding Rate 7.44 Mpps

MAC Address Table 2K entries

Packet Buffer 1 Mbits

Flash Memory 2 Mbytes

Physical

Acoustic 0 dB(A)

Power Input 100 to 240 V AC, 50 to 60 Hz external power adapter

Maximum Power

Consumption 3.42 W

Ventilation Fanless

Dimensions 100.5 x 82 x 28 mm

Weight 0.23kg

Operating Temperature 0 to 40 ˚C

Storage Temperature -40 to 70 ˚C

Operating Humidity 0% to 90% RH, non-condensing

Storage Humidity 0% to 95% RH, non-condensing

Software

L2 Features MAC address table: 8K entries

IGMP Snooping

Static trunk

Flow Control

Loopback Detection (LBD)

Port mirroring

Statistics (supports 4 groups)

VLAN 32 static VLAN groups

Configures VID from 1-4094

802.1Q tagged VLAN

Port-based VLAN

Management VLAN
