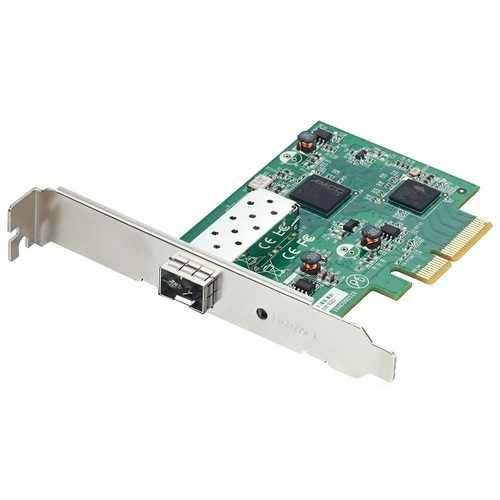

1-Port PCIe 10G SFP+ Adapter D-Link DXE-810S

- The D-Link DXE-810S 10 Gigabit Ethernet SFP+ PCI Express Adapter is a high performance adapter designed for the high-speed PCI Express bus architecture. It offers increased bandwidth, reliability, and more functionality than standard PCI network cards. It is specifically designed to allow throughput at rates up to 20 Gbps, thus eliminating the bottleneck that exists with current 32 and 64-bit PCI bus architectures.

Specifications

Model DXE-810S

Standards IEEE 802.1Q VLAN tagging

IEEE 802.3x flow control

IEEE 802.3ae 10 Gbps Ethernet

IEEE 802.3aq 10GBASE-LRM

PCI Express x4 2.0, 5 GT/s compliant

Power Maximum Power Consumption: 4.472W

Input Voltage: 3.3 V/12 V

Data Transfer Rate 10 Gbps

Network Operation Mode Full Duplex (20 Gbps)

Interface Slot PCI Express x4/x8/x16 slot

Supported Functions 16 KB Jumbo Frame

802.1Q VLAN tagging

Simple Network Management Protocol Agent

Driver Support Windows 8, 7

Windows Server 2012, 2008

Windows Hyper-V

Linux kernel 2.6.x - 3.x.x

VMWare ESXi 4.x

Dimensions 108 x 120 x 19 mm

Temperature 0 ~ 40°C

- Bảo hành 36 tháng.
