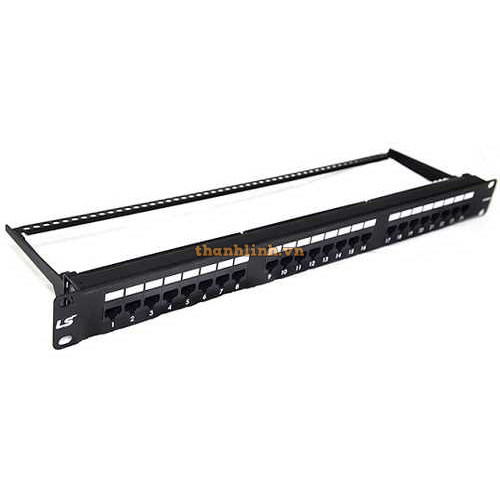

24-Port Unshielded Patch Panel LS CAT6 (LS-PP-UC6-24P-WM-EC)

- Part Number: LS-PP-UC6-24P-WM-EC

- LS Simple PCB type 1Unit 24-port unshielded patch panel comes complete with accessories and full instructions. It fully complies with the ANSI/TIA-568.D-2(Category 6), RJ-45 of 47 CFR part 68 and ISO/IEC 11801 standards. The panel modules are individually terminated using IDC giving assurance of wire connection and using punching down tool (LS-TOOL-MJ or LS-STOOL). Additionally enclosed Wire Management for managing cabling.

Application

- Horizontal Distribution & Backbone Cabling

- 4/16 Mbps Token Ring (IEEE 802.5)

- 10/100/1000 BASE-T (IEEE 802.3)

- 155 Mbps ATM

- 100Mbps TP-PMD

- ISDN, ADSL

- RoHS2 compliant

- ATM LAN 1.2G

Technical

FEATURE

Approvals UL, KC

Category ANSI/TIA-568.D-2 (Category 6)

Meet CFR 47 Parts 68

Wiring scheme T568A/T568B

ELECTRICAL

Current Rating 1.5 Amps

Insulation Resistance > 500 Mega‐ohm

Contact Resistance < 20 milli‐ohm

DC Resistance < 200 milli‐ohm

Voltage proof < 1000 VDC

MECHANICAL

Insertion Life 750 mating cycles

Pull Force 20lbs (89N)

Temperature ‐10℃ ~ 60℃

Humidity 10% ~ 90% RH

IDC accept 22~24 (Solid wire), 200 termination cycles

PHYSICAL

Panel SPCC

Plastic frame ABS, UL94V-0

Jack contacts Phosphor bronze, 50μ-inch gold coating

IDC Plastic PC, UL94V-0

IDC Terminals Phosphor bronze, tin over nickel undercoat

Wire Management SPCC
