Modular Jack LS Unshielded Cat6A UTP ERI

- Part Number: LS-MJ-UC6A-xx-ERI.

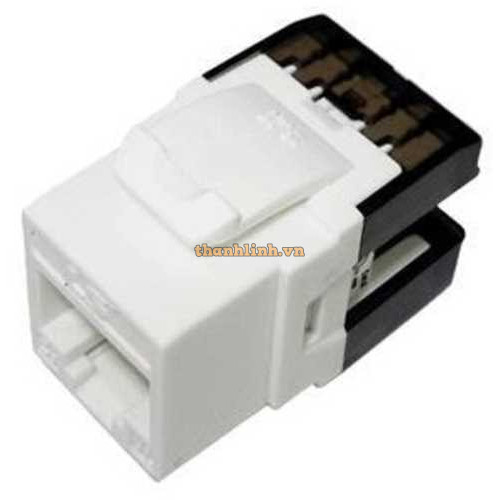

- 180º Unshielded CAT6A Modular Jack, ERI type.

Description

- LS Simple™ Unshielded Modular Jack.

- User instructions and basic wiring layout for standard configuration are included.

- 180º slim Modular Jack.

- Designed and manufactured to meet demanding of international standards.

- Individually terminated using slim-IDC (Insulation Displacement Connectors).

- T568A or T568B configuration.

- 47 CFR part 68 (RJ-45), ANSI/TIA-568-C.2(Category 6A) and ISO/IEC 11801 compliant.

- High impact flame retardant plastic housing.

- Easy installation & smart cabling arrangement by dedicated termination tool.

- RoHS compliant.

Application

- Horizontal Distribution & Backbone Cabling.

- 4/16 Mbps Token Ring(IEEE 802.5).

- 10/100/1000/10G BASE-T(IEEE 802.3).

- 155 Mbps ATM.

- 100Mbps TP-PMD.

- ISDN, ADSL.

- ATM LAN 1.2G.

Specification

Part Number LS-MJ-UC6A-xx-ERI

Electrical / Mechanical Characteristics

Current Rating 1.5 A

Insulation Resistance 500 MΩ

DC Resistance 0.1 Ω Max

Voltage 150 VAC Max

Insertion Life 750 Mating Cycles

Plug Retention Force 20 lbs (89N)

Temperature -40ºC ~ 68ºC

Humidity 10% ~ 90% RH

IDC Accept 22 ~ 26 AWG Solid Wire

Dimension 0.64 x 0.66 x 1.5 inch

Materials

Housing High Impact Flame Retardant Plastic, UL 94V-0 Rated

Spring Wire Phosphor Bronze Plated with 50, Micro-inch (1.27 microns) Thick Gold, Over 80 Micro-inch (2.54 microns), Thick Nickel Undercoat

IDC Plastic Polycarbonate or ABS, UL 94V-0 Rated over

IDC Contact Phosphor Bronze Plated with 100, Micro-inch (2.54 microns) Thick Tin

Approvals

Category ANSI/TIA-568-C.2 Category 6A, ISO/IEC 11801 Class EA

Wiring Scheme T568A/T568B

Meet FCC CFR 47 Parts 68

- Sản xuất tại Đài Loan.
