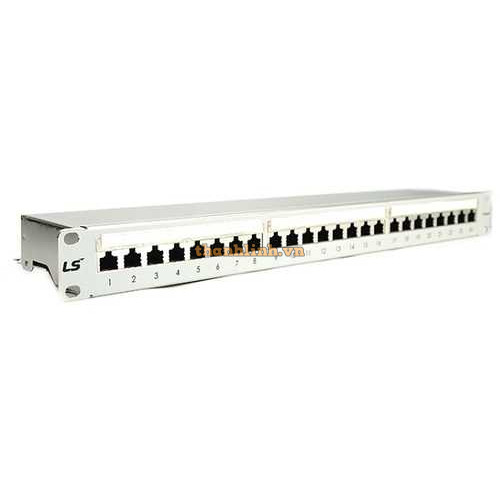

Patch panel 24-port Shielded LS CAT.6 (LS-PP-SC6-24P)

- Part Number: LS-PP-SC6-24P.

- 24-Port Cat.6 Shielded Patch Panel, Module IDC type.

Description

- These PCB 1U 24 way patch panels come complete with cable management, accessories and full installation instructions.

- It fully complies with the requirements set out in ANSI/TIA-568-C.2

- UL Listed.

- Architectural design and flexibility – Support max. 4 connection channels

- Available in 24-port (1U) options.

- Easy cable routing and bundling through improved rear cable management.

- Electirical performances comply with ANSI/TIA-568-C.2 (Category 6/Class E level).

- Qualifies for the LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6 Channel.

Application

- Horizontal Distribution & Backbone Cabling.

- 4/16 Mbps Token Ring (IEEE 802.5).

- 10/100/1000 BASE-T (IEEE 802.3).

- 155 Mbps ATM.

- 100Mbps TP-PMD.

- ISDN, ADSL.

- ATM LAN 1.2G.

Specification

Part Number LS-PP-SC6-24P

Electrical / Mechanical Characteristics

Current Rating 1.5 A

Insulation Resistance 500 MΩ

DC Resistance 0.1 Ω Max

Insertion Life 750 Mating Cycles

Plug Retention Force 20 lbs (89N)

Temperature -40ºC ~ 68ºC

Humidity 10% ~ 90% RH

IDC Accept 23 ~ 26 AWG Solid Wire

Dimension 1.75 x 18.97 x 4.33 inch

Materials

Housing High impact Flame Retardant Plastic UL 94V-0 or 2 Rated

Spring Wire Phosphor Bronze Plated With 50 micro-inch (1.27 Microns) / Thick Gold over 100 Micro-inch (2.54 Microns) / Thick Nickel

IDC Plastic Polycarbonate or ABS, UL 94V-0 or 2 rated over

IDC Contact Phosphor Bronze Plated With 100 micro- inch(2.54 microns) / Minimum Thick Tin

Panel Steel With Black Painting (Unshielded)

Approvals

Category ANSI/TIA-568-C.2 Category 6, ISO / IEC 11801 Class E

Wiring Scheme T568A/T568B

Meet FCC CFR 47 Parts 68

- Sản xuất tại Đài Loan.
