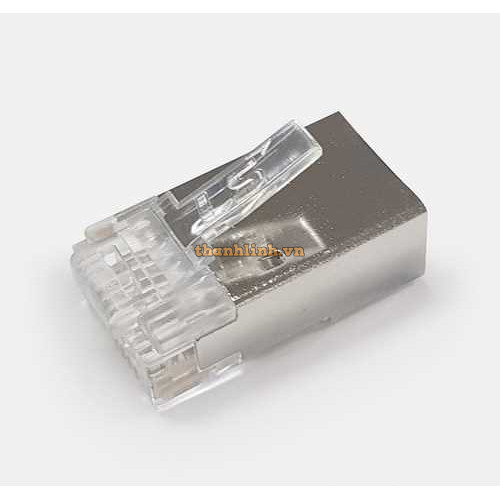

Đầu nối RJ45-Modular Plug LS FTP Cat5e/Cat6/Cat6A (LS-MP-SC-RJ45-EZ-C)

Part Number: LS-MP-SC-RJ45-EZ-C

- RJ45 Shielded Modular Plug for FTP Cat5e/Cat6/Cat6A, Transparent boot.

- Reduced work time as no accessory needed for assembly (except for boot).

- Easy to check wiring with thru type hole.

- Improved transmission performance with special housing inner struecture (Minimized twisting wire length).

Application

- Used for Equipment Cord(horizontal cabling) or Patch cord.

- 4/16 Mbps Token Ring (IEEE 802.5).

- 10/100/1000/10G BASE-T (IEEE 802.3).

- 155Mbps ATM.

Specification

FEATURE

Approvals KC

Standard ANSI/TIA-568-C.2

Wiring scheme CFR title 47 part 68.5 and IEC 60603-7

Configuration T568A/T568B

ELECTRICAL

Rated Voltage 250V AC max. at 2A

Insulation Resistance > 500 Mega‐ohm

Contact Resistance < 20 milli‐ohm

Dielectric Strength 1000 VAC(RMS)

MECHANICAL

Insertion Life 2000 Mating cycles

Pull Force(Cable to Plug) 20 (89) lbs(N)

Temperature ‐40 ~ 125℃

Humidity 10 ~ 90 % (RH)

PHYSICAL

Plug Housing, Insulation Wire Guider, Separator Transparent High-impact Polycarbonate (PC)

UL 94V-2 rated

Contact Blade 3-prong IDC Structure, High Reliability

Overall Shield SUS

Boot PC UL94 V-2 rated
