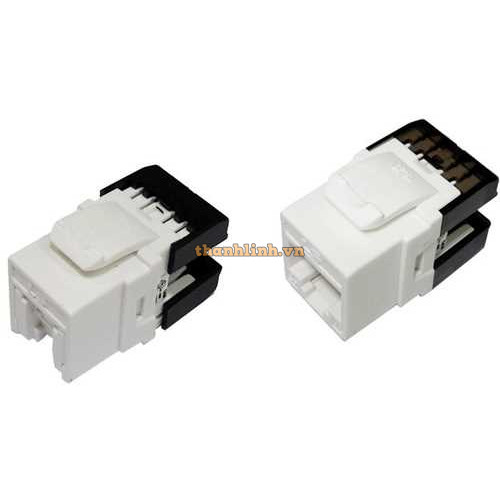

Modular Jack LS Unshieled Cat5e UTP ERI White (LS-MJ-UC5E-WH-ERI)

Part Number: LS-MJ-UC5E-WH-ERI.

Category 5e Unshielded Keystone Jack White color, Enhanced Rear IDC type.

Description

LS simple™ Category 5e modular jacks are designed and manufactured to meet today’s and tomorrow’s demanding international standards. It takes into consideration the needs for reliable and quick installations. The jack is individually terminated using Insulation Displacement Connectors (IDC) giving assurance of wire connection when using a punch down tool. User instructions and basic wiring layout for standard configuration are included. The LS simple™ Modular Jack comes with the ability to wire to a T568A or T568B configuration and fully complies with ANSI/TIA-568-C.2 (Category 5e) and ISO/IEC 11801(Class D) component performances.

Application

- Meet Category 5e/Class D performance levels.

- Architectural design and flexibility – Support max. 4 connection channels.

- Universal design and label supports both T568A and T568B wiring.

- IDC Connector accept and allow quick, easy installation of 22~26 AWG cable.

- Optimal performance is achieved when using LS simple™ Category 5e patch cords.

Specification

Part Number LS-MJ-UC5E-WH-ERI

Electrical / Mechanical Characteristics

Current Rating 1.5 A

DC Resistance 0.1 Ω Max

Voltage 150 VAC Max

Insertion Life 750 Mating Cycles

Plug Retention Force 20 lbs (89N)

Temperature -40ºC ~ 68ºC

Humidity 10% ~ 90% RH

IDC Accept 22 ~ 26 AWG Solid Wire

Dimension 0.76 x 0.66 x 1.5 inch

Materials

Housing High Impact Flame Retardant Plastic, UL 94V-0 Rated

Spring Wire Phosphor Bronze Plated with 50, Micro-inch (1.27 microns) Thick Gold, Over 80 Micro-inch (2.54 microns), Thick Nickel Undercoat

IDC Plastic Polycarbonate or ABS, UL 94V-0 Rated

IDC Contact Phosphor Bronze Plated with 100, Micro-inch (2.54 microns) Thick Tin

Shield Copper Zinc Alloy, Pre-Plated with Bright Nickel

Approvals

Category ANSI/TIA-568-C.2 Category 5e, ISO/IEC 11801 Class D

Wiring Scheme T568A/T568B

Meet FCC CFR 47 Parts 68

- Sản xuất tại Đài Loan.
