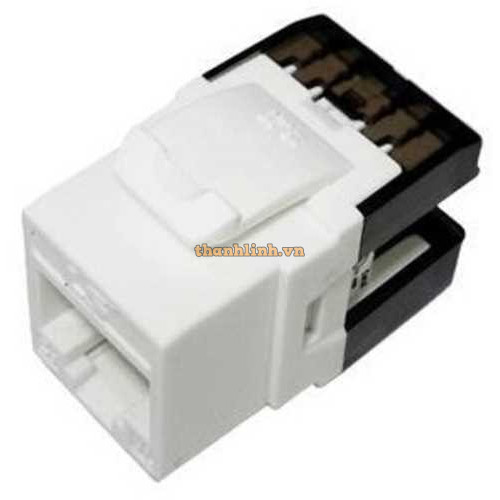

Modular Jack LS Unshielded Cat6 UTP ERI (LS-MJ-UC6-WH-ERI)

- Part Number: LS-MJ-UC6-WH-ERI

- Colour: White.

- Category 6 Unshielded Keystone Jack, Enhanced RIDC type.

Description

- LS Simple™ Category 6 modular jacks are designed and manufactured to meet today’s and tommorow’s demanding international standards.

- It takes into consideration the need for reliable and quick installations.

- The jack is individually terminated using Insulation Displacement Connectors (IDC) giving assurance of wire connection when using a punch down tool and tool-less for installation.

- User instructons and basic wiring layout for standard configuration are included.

- The LS Simple™ modular jack comes with the ability to wire to a T568A or T568B configuration and fully complies with ANSI / TIA-568-C.2 Category 6.

- Electrical performances comply with ANSI/TIA-568-C.2 (Category 6 performance levels).

- Architectural design and flexibility – Support max. 4 connection channels.

- Universal design and label supports both T568A and T568B wiring.

- IDC Connector accept and allow quick, easy installation of 23~26AWG cable.

- Optimal performance is achieved when using SimpleTM Category 6 patch cords.

- Qualifies for the LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6 Channel.

- Dimension: 0.76 x 0.66 x 1.5 inch.

Application

- Horizontal Distribution & Backbone Cabling.

- 4/16 Mbps Token Ring (IEEE 802.5).

- 10/100/1000 BASE-T (IEEE 802.3).

- 155 Mbps ATM.

- 100Mbps TP-PMD.

- ISDN, ADSL.

- ATM LAN 1.2G.

Approvals

- Category - ANSI/TIA-568-C.2 Category 6, ISO / IEC 11801 Class E.

- Meet - FCC CFR 47 Parts 68.

- Wiring Scheme - T568A / T568B.

- Sản xuất tại Taiwan.
