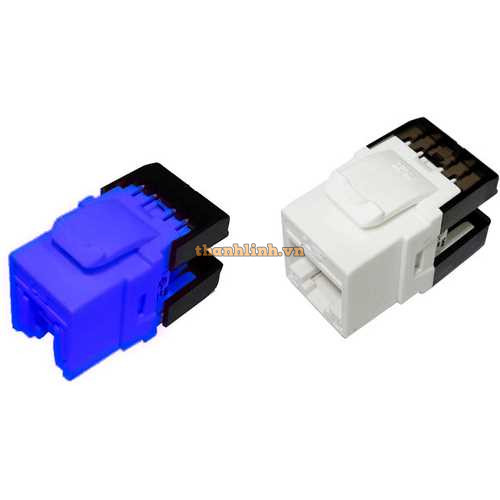

Modular Jack LS Unshieled Cat5e UTP ERD White/Blue (LS-MJ-UC5E-xx-ERD)

Part Number: LS-MJ-UC5E-xx-ERD.

Category 5e Unshielded Keystone Jack White/Blue Color, ERI type with door.

Description

LS Simple™ Category 5e modular jacks are designed and manufactured to meet today’s and tomorrow’s demanding international standards. It takes into consideration the needs for reliable and quick installations. The jack is individually terminated using Insulation Displacement Connectors (IDC) giving assurance of wire connection when using a punch down tool and dedicated easy termination tool. User instructions and basic wiring layout for standard configuration are included. The LS simple™ Modular Jack comes with the ability to wire to a T568A or T568B configuration and fully complies with ANSI/TIA-568-C.2 (Category 5e) and ISO/IEC 11801(Class D) component performances. The slide door type modular jack for dust proof on unused port is applicable according to customer requirement and also 2-way slim IDC cover is applicable in HD system configuration.

- Meet Category 5e/Class D performance levels.

- Architectural design and flexibility – Support max. 4 connection channels.

- Universal design and label supports both T568A and T568B wiring.

- IDC Connector accepts and allows quick, easy installation of 23~26 AWG cable.

- Optimal performance is achieved when using LS simple™ Category 5e patch cords.

Application

- Horizontal Distribution & Backbone Cabling.

- 4/16 Mbps Token Ring (IEEE 802.5).

- 10/100/1000 BASE-T (IEEE 802.3).

- 155Mbps ATM.

- 100Mbps TP-PMD.

- ISDN, ADSL.

Specification

Part Number LS-MJ-UC5E-xx-ERD

Electrical / Mechanical Characteristics

Current Rating 1.5 A

DC Resistance 0.1 Ω Max

Voltage 150 VAC Max

Insertion Life 750 Mating Cycles

Plug Retention Force 20 lbs (89N)

Temperature -40ºC ~ 68ºC

Humidity 10% ~ 90% RH

IDC Accept 22 ~ 26 AWG Solid Wire

Dimension 0.76 x 0.66 x 1.5 inch

Materials

Housing High Impact Flame Retardant Plastic, UL 94V-0 Rated

Spring Wire Phosphor Bronze Plated with 50, Micro-inch (1.27 microns) Thick Gold, Over 80 Micro-inch (2.54 microns), Thick Nickel Undercoat

IDC Plastic Polycarbonate or ABS, UL 94V-0 Rated

IDC Contact Phosphor Bronze Plated with 100, Micro-inch (2.54 microns) Thick Tin

Shield Copper Zinc Alloy, Pre-Plated with Bright Nickel

Approvals

Category ANSI/TIA-568-C.2 Category 5e, ISO/IEC 11801 Class D

Wiring Scheme T568A/T568B

Meet FCC CFR 47 Parts 68

- Sản xuất tại Đài Loan.
