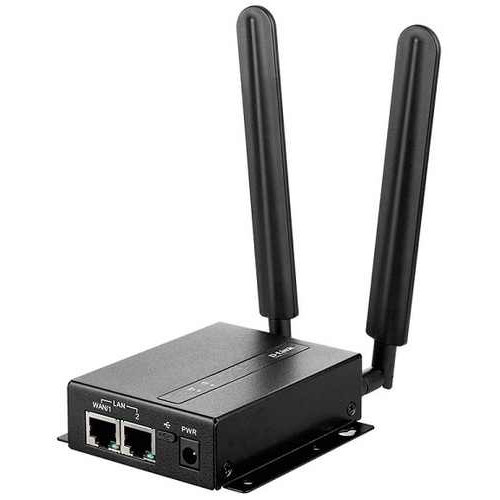

4G LTE M2M Router D-Link DWM-315

- LTE speeds up to 300 Mbps

- Two LAN/WAN switchable 10/100/1000 Gigabit Ethernet ports - one default LAN

- 1000 Ethernet port delivers connectivity to wired devices

- Dual-SIM card slots allow for multi-network failover

- Easy-to-use web interface

- Supports IPSec, PPTP, L2TPv2, GRE, Open VPN tunnels to suit a range of network setups

- D-Link D-View 7 optional and SNMP support for rapid deployment

- Wide operating temperature and humidity tolerance allows for deployment in a range of environments

- Zinc-plated steel casing protects internal components

- Supports D-Link ECS (DECS) for remote management and administration via web browser

Specifications

Model DWM-315

Device Interfaces 1 x 10/100/1000 Fast Ethernet WAN/LAN port

1 x 10/100/1000 Fast Ethernet LAN port

1 x 5.5 mm DC input

2 x LTE SMA (antenna connectors)

1 x GPS SMA (antenna connectors)

Dual Micro-SIM slots

1 x MicroUSB 2.0

1 x MicroSD Slot (supports SD-XC Class 10, max 64 GB)

Standards IEEE 802.3i

IEEE 802.3u

Advanced Features L2TP/PPTP/IPSec/GRE

SNMP and D-View 7 Support

Virtual Server

GNSS

Firmware over the air (FOTA) upgrades

Web-based UI

TR-069 CPE WAN Management Protocol

DMZ & Pass Through

SMS Management

D-Link ECS Remote Management

Physical

LED Status Indicators Network Connectivity

Signal Strength

Power 5V/2A adapter

Flexible input: DC 5V/2A ~ 18V/0.7A

Enclosure Corrosion-resistant zinc-plated steel

Dimensions 93 x 70 x 23.6 mm

Weight 210g

Temperature Operating: -20 to 60 °C

Storage: -40 to 85 °C

Humidity Operating: 5% to 85% non-condensing

Storage: 0% to 95% non-condensing

- Bảo hành: 24 tháng.
