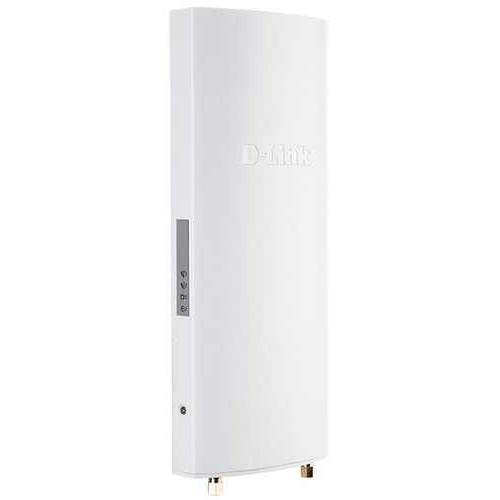

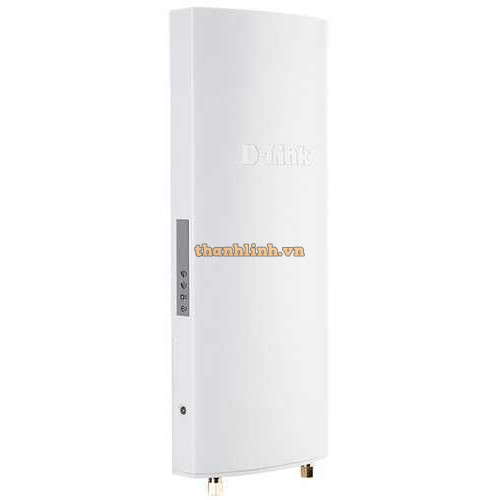

Unified Wireless AC1300 Wave 2 Dual Band Access Point D-Link DWL-6720AP

Ideal for Businesses

- Multiple virtual access points can be created from a single access point

- Flexible QoS with WMM

- Power over Ethernet enables installation in hard to reach locations

- UL2043-certified chassis (Plenum-rated SKU)

High-Performance Connectivity

- Supports 160 MHz channel for doubled capacity

- Band steering for efficient traffic management

- Airtime Fairness

- 802.11kvr Fast Roaming

- Supports Link Aggregation

Trusted Wireless Security Features

- 128-bit Personal & Enterprise wireless encryption

- Latest 128-bit Personal & 192-bit Enterprise wireless encryption

- MAC address filtering

- Rogue AP detection

Specifications

Model DWL-6720AP

General

Hardware Version A1

Wireless Interface IEEE 802.11b/g/n 2.4 GHz wireless

IEEE 802.11/a/n/ac Wave 2 5 GHz wireless

Ethernet Interface 1 x 10/100/1000BASE-T LAN port

Console Port RJ45

MIMO 2 x 2

Data Rate 2.4 GHz - Up to 400 Mbps

5 GHz - Up to 867 Mbps

Antenna Internal omni-directional antennas

2.4 GHz: 3.5 dBi

5 GHz: 5 dBi

Operating Frequency 2400 to 2483.5 MHz

5150 to 5850 MHz

Operating Channels 1 to 13 channels for 2.4 GHz band (per country code)

36 to 165 channels for 5 GHz band (per country code)

System Management Web-based user interface (HTTP/HTTPs)

Command-Line Interface (CLI)

Telnet/SSH

Functionality

Advanced Features Auto Channel selection

802.1p Quality of Service (QoS)

Wireless Multimedia (WMM)

Wireless Distribution System (WDS)

Band steering

Airtime Fairness

IEEE 802.11kvr Fast Roaming
