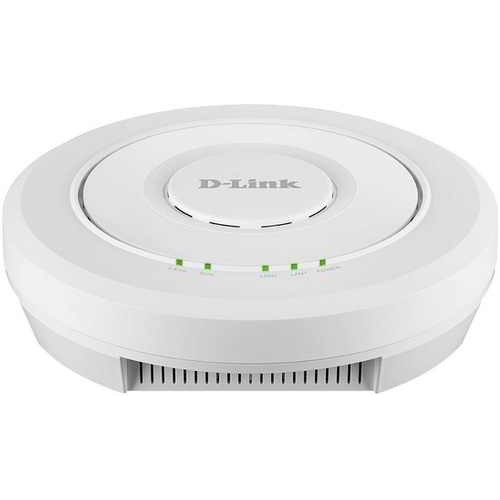

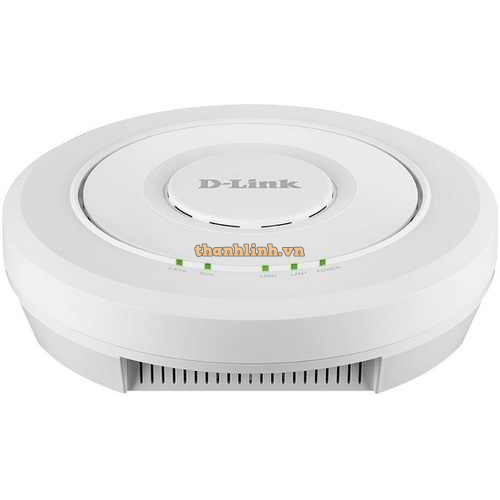

Wireless AC1300 Wave 2 Dual‑Band Unified Access Point D-Link DWL-6620AP

- 802.11ac Wave 2, up to 1.3Gbps speeds

- 2x2 Internal D-Link Smart Antennas

- Up to 32 virtual access points per access point

- Multi-User Multiple-Input Multiple-Output (MU-MIMO)

- Quality of Service (QoS)

Specifications

Model DWL-6620AP

General

Interfaces 802.11b/g/n 2.4 GHz

802.11a/n/ac Wave 2 5 GHz

Two 10/100/1000BASE-T LAN PoE ports

One RJ45 console port

Antenna 2x2 Internal Smart Antennas

Data Rate 2.4 GHz - Up to 400 Mbps

5 GHz - Up to 867 Mbps

Functionality

Operating Frequency 2400 to 2483.5 MHz

5150 to 5850 MHz

Operating Channels 1 to 13 channels for 2.4 GHz band (per country code)

36 to 165 channels for 5 GHz band (per country code)

System Management Web-based user interface (HTTP/HTTPs)

Command-Line Interface (CLI)

Telnet/SSH

Security

SSID Security Up to 32 SSIDs, 16 per radio

802.1Q VLAN

Station Isolation

Wireless Security WPA/WPA2 Personal/Enterprise

AES and TKIP

Detection & Prevention Rogue and valid AP classification

Authentication MAC address filtering

Physical

Power Supply External Power Adapter: 12 VDC 2A (not included)

Powered by 802.3at PoE power

Power over Ethernet 10/100/1000Mbps 802.3at PoE input on LAN 1 Port

Max Power Consumption 16.32 W

Dimensions 220 x 55.45 mm

Weight 0.614 kg

Operating Temperature 0 to 40 °C

Storage Temperature -20 to 65 °C

Operating Humidity 10% to 90% non-condensing

Storage Humidity 5% to 95% non-condensing

- Bảo hành: 24 tháng.
