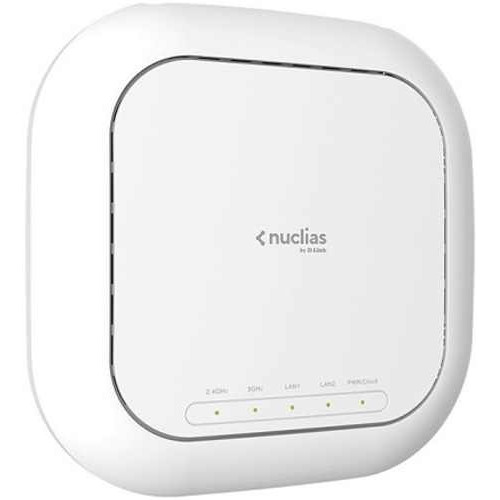

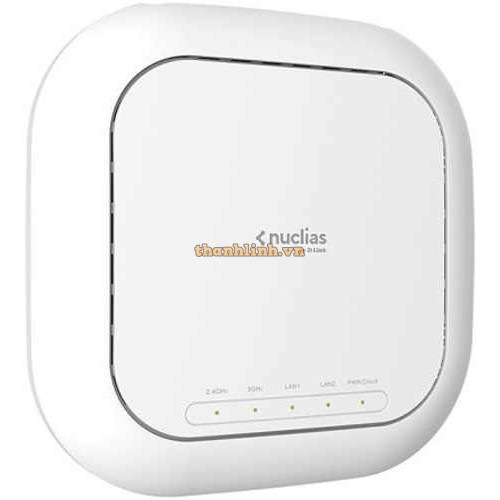

Nuclias Cloud-Managed AC1900 Wave 2 Access Point D-Link DBA-2520P

- Centralized cloud-based management, with intuitive web and app-based interface.

- Superior throughput with dual-band transfer speeds up to 600 Mbps in the 2.4 GHz band and 1300 Mbps in the 5 GHz band.

- Slice through congestion with better handling of multiple connections thanks to IEEE 802.11ac Wave 2 wireless.

- 2 x 2 MU-MIMO Antenna with two spatial streams handles simultaneous connections more efficiently.

- Supports WPA3™ - the latest WiFi security for more protection.

- Band Steering pushes 5 GHz capable devices onto the faster band.

- Beamforming tracks devices, giving better connectivity while on the move

- Create a secure guest network with social login amongst other authentication options.

- Supports Power over Ethernet for simpler installation with less cable clutter.

- With Zero Touch Deployment, deployment is flexible and fast: get online in no time.

- Equipped with an integrated DHCP Server to provide stand-alone capabilities.

- PoE Injector and Power Adapter are not included.

Specifications

Model DBA-2520P

General

Interface 2 x 10/100/1000 Mbps Ethernet port

1 x RJ45 Console port

IEEE 802.11a/b/g/n/ac Wave 2 wireless

Standards IEEE 802.11a/b/n/g/ac Wave 2

IEEE 802.3az Energy-Efficient Ethernet (EEE)

IEEE 802.3at Power over Ethernet (PoE)

IEEE 802.3i/u/ab

IEEE 802.3x Flow Control

Data Signal Rate 2.4 GHz: Up to 600 Mbps

5 GHz: Up to 1299 Mbps

Antenna Internal omnidirectional antennas

2.4 GHz: 3 dBi

5 GHz: 4 dBi

Maximum Output Power 2.4 GHz: 25 dBm

5 GHz: 25 dBm

Functionality

Security WPA3-Personal/Enterprise

WPA2-Personal/Enterprise

WPA-Personal/Enterprise

MAC address filtering

SSID isolation

Guest isolation

Captive portal

Station isolation

Maximum SSIDs Supports up to 16 SSIDs per device: Up to 8 SSIDs per wireless band

Physical

Power Input IEEE 802.3at Power over Ethernet (PoE) on LAN 1

Power adapter: 12 V DC, 2.5 A

Power Consumption PoE: 19.68 W

Power adapter: 16.92 W
