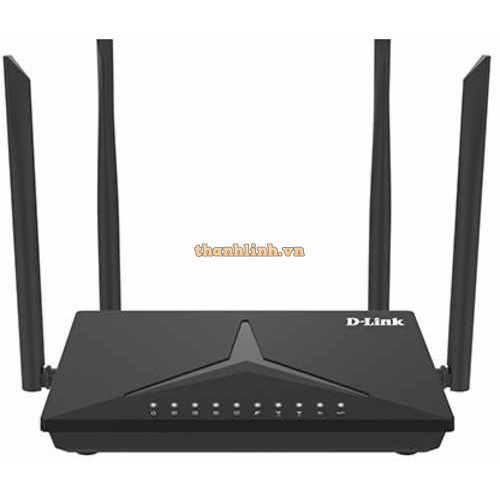

AC1200 MU-MIMO Gigabit Router D-LINK DIR-825M

- The DIR-825M AC1200 MU-MIMO Wi-Fi Gigabit Router is a powerful wireless networking solution designed for Small Offi ce/Home Offi ce (SOHO) environments. By combining high-speed 802.11ac Wi-Fi with dual-band technology and Gigabit Ethernet ports, the DIR-825M provides a seamless networking experience with a high degree of convenience and fl exibility for SOHOs. The DIR-825M’s SOHO-class advanced security features keep data safe from unwanted network intruders. This together with the increased range and reliability of Wireless AC technology, helps provide a safe and secure network for devices further into your home or offi ce

Features

- High-Speed Connectivity

+ 802.11ac MU-MIMO wireless delivers blazing fast wireless connectivity with increased range and reliability

+ 10/100/1000 Gigabit Ethernet WAN port for fast paced Internet access

+ Four 10/100/1000 Gigabit Ethernet LAN ports give you high-speed wired connectivity

+ USB 2.0 for local network sharing

+ Mesh Ready

- Secure Wireless Connection

+ The Latest 128-bit Personal/192-bit Enterprise Wi-Fi Encryption

- Flexible Bandwidth

+ Concurrent dual-band wireless for connections up to 1200 Mbps

+ QoS engine to prioritize important traffi c and deliver uninterrupted bandwidth

- Setup and Management

+ Web browser-based setup and confi guration

+ Multiple Operating Modes Router/Access Point/Repeater/WISP Repeater/Wi-Fi Client

+ Intuitive setup wizard to guide you through the confi guration process

+ Firewall and access control options to prevent attacks and restrict access to your network

Technical Specifications

Hardware

Device Interface 1x 10/100/1000 WAN Ethernet

4x 10/100/1000 LAN Ethernet

1x USB 2.0

LEDs Power

Internet

4 LAN LEDs

USB

2.4GHz WLAN

5GHz WLAN

WPS

Buttons • POWER button to power on/power off

• WPS button to set up wireless connection

• RESET button to restore factory default settings

Antenna • 2x 5dBi 2.4GHz External Antennas

• 2x 5dBi 5GHz External Antennas

Power connector • Power input connector (DC)

CPU frequency • Single core 1GHz

Software

WAN connection types • PPPoE

• PPPoE Dual Stack

• Static IP

• Dynamic IP

• PPPoE + Static IP (PPPoE Dual Access)

• PPPoE + Dynamic IP (PPPoE Dual Access)

Network functions • DHCP server/client

• Dynamic DNS

• Static routing

Firewall functions • Network Address Translation (NAT)

• Stateful Packet Inspection (SPI)

• URL filter

• MAC filter

• IP filtering

• Port filtering

• DMZ and Port forwarding(Virtual server)

• NAPT and ALG

• Denial of Service (DoS) protection

VPN • PPTP/L2TP/GRE

• IPSec/PPTP/L2TP pass-through

Management • Firmware update via web-based interface

• Saving/restoring configuration to/from file

• Access settings through WEB GUI

• Automatic NTP Date/time from Internet Time Server

• TR-069 remote management

• Logs and statistics

Wireless Module Parameters

Standards • IEEE 802.11 a/b/g/n/ac

Frequency range • 11N: 2.4~2.4835GHz

• 11AC: 5.150~5.825GHZ

Wireless connection security • The Latest 128-bit Personal/192-bit Enterprise Wi-Fi Encryption

• МАС filter

• WPS (PBC/PIN)

Advanced functions • Wireless Client Mode

• Wireless AP Mode

• Wireless Repeater Mode

• WISP Mode

• Mesh Ready

• Multiple SSID’s

• Wireless Schedule

• FTP Server

Transfer rate • HT20: up to 144 Mbps

• HT40: up to 300 Mbps

• VHT80: up to 867Mbps

Software

Modulation schemes • OFDM = BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

• DSSS = DBPSK, DQPSK, CCK

Physical Parameters

Dimensions (L x W x H) 197 x 133.86 x 44.26 mm

Operating Environment

Power Output: 12V DC, 1A

Temperature Operating: from 0 to 40 °C

Storage: from -20 to 90 °C

Humidity Operating: from 5% to 95% (non-condensing)
