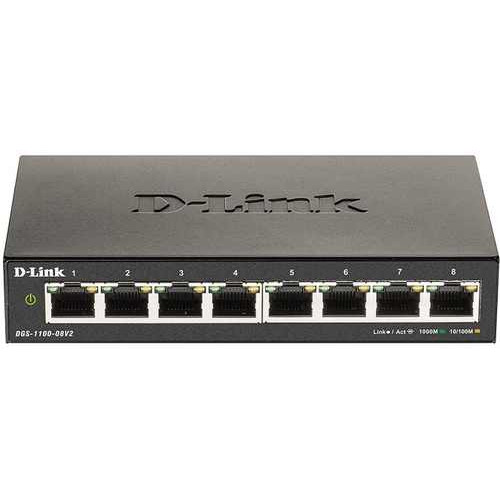

8-Port Gigabit Smart Managed Switch D-Link DGS-1100-08V2

Physical

- 8 x 10/100/1000BASE-T ports

- Fanless design for silent operation

Green Technology

- Link status detection

- IEEE 802.3az Energy-Efficient Ethernet compliant

Advanced Features

- IGMP Snooping

- Bandwidth Control

- IEEE 802.1Q VLAN traffic segregation

- Port-based VLAN

- IEEE 802.1p Quality of Service

- Surveillance VLAN

- Voice VLAN

Management Features

- Client-based utility or web-based GUI

- Built-in SNMP MIB

Đặc tính kỹ thuật

Model DGS-1100-08V2

General

Hardware Version A1

Size Desktop

Number of Ports 8 x 10/100/1000 Mbps

Port Functions IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab for Gigabit Ethernet

Auto-negotiation

Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps)

Auto MDI/MDIX

IEEE 802.3x Flow Control supports full-duplex mode

IEEE 802.3az compliant

Performance

Switching Capacity 16 Gbps

Maximum Forwarding Rate 11.9 Mpps

MAC Address Table Size 4K entries

Packet Buffer 1.5 Mbits

Flash Memory 2 Mbytes

Physical

Power Input 100 to 240 V AC, 50 to 60 Hz external power adapter

MTBF 1,456,992 hours

Acoustics 0 dB(A)
