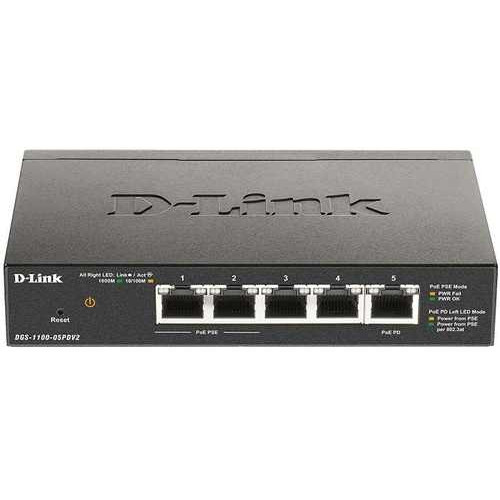

5-Port Gigabit PoE Smart Managed Switch D-Link DGS-1100-05PDV2

- 5 x 10/100/1000BASE-T ports

- Powered by IEEE 802.3af/at PoE through port 5

- Supports PoE Pass-through (ports 1 and 2 only)

- Compact design for convenient placement

- Fanless design for silent operation

- Innovative D-Link Green energy saving features

- Complete web interface for comprehensive switch management

Đặc tính kỹ thuật

Model DGS-1100-05PDV2

General

Hardware Version A1

Size Desktop

Number of Ports 2 x 10/100/1000 Mbps (PoE)

3 x 10/100/1000 Mbps

Port Functions IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab for Gigabit Ethernet

IEEE 802.3af

Auto-negotiation

Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps)

Auto MDI/MDIX

IEEE 802.3x Flow Control supports full-duplex mode

IEEE 802.3az compliant

Performance

Switching Capacity 10 Gbps

Maximum Forwarding Rate 7.44 Mpps

MAC Address Table Size 2K entries

Packet Buffer 1 Mbits

Flash Memory 2 Mbytes

PoE

PoE Standard IEEE 802.3af

PoE Capable Ports Ports 1 to 2

PoE Power Budget PoE Passthrough:

18 W with 802.3at input

8 W with 802.3af input

Power Consumption

Standby Mode 1.728 W

Maximum Power Consumption 24.08 W (PoE on)

3.24 W (PoE off)

Physical

Power Input 802.3af/at PoE power only via PD port 5

No power supply

MTBF 2,357,475 hours

Acoustics 0 dB(A)

Weight 0.38 kg

Dimensions 150 x 97 x 28 mm

- Bảo hành: 3 năm.
