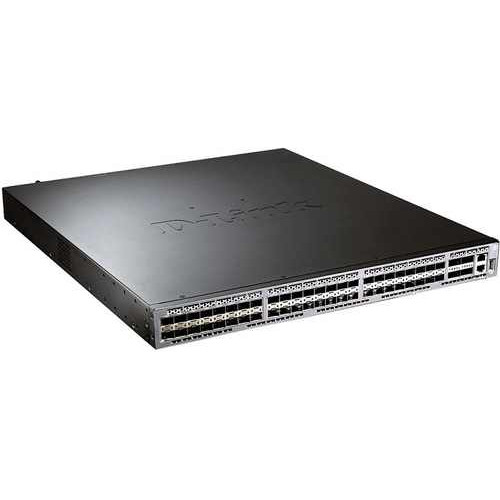

64-Port Data Center TOR Switch D-Link DXS-F3500-64S

- 48 x 10Gbps SFP+ & 4 x 40Gbps QSFP

- 2 x AC/DC Hot-Swappable Power Modules (1+1 with Load Sharing)

- 5 x Fan Modules

- 1.28Tbps Switch Capacity

- 960Mpps Max Forwarding Rate

- Multi-Chassis Trunking (MCT) support of Virtual Switching Unit (VSU).

- Lossless Ethernet (via DCB) and 802.1Qau/az/bb

Specifications

Model DXS-F3500-64S

Interfaces

Interfaces Up to 64 10-Gig SFP+ or 48 10-Gig SFP+ & 4 40-Gig QSFP Ports

Console Port RJ-45 and Mini USB console ports for out-of-band CLI management

Management Port 10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management

USB Port A-Type Port

Performance

Switching Capacity 1.28 Tbps

Max. Forwarding Rate 960 Mpps

Packet Buffer Memory 9 MB

MAC Address Table 128K

Physical

Power input Dual Redundant AC Power supplies (100 to 230 V AC)

Dual Redundant DC Power supply 36V ~ 72V (Available on request)

Dimensions (W x D x H) 442.5×404×44 mm, 1U

Operating Temperature 0° to 50° C

Storage Temperature -20° to 70° C

Operating Humidity 10%-90% non-condensing

Storage Humidity 5%-95% non-condensing

Software Features

Layer 2 MAC Address Table up to 128K entries

Flow Control

Spanning Tree Protocol

Jumbo Frame

802.1AX Link Aggregation

ERPS (Ethernet Ring Protection Switching)

Port mirroring

Flow mirroring

VLAN mirroring

L2 protocol tunnelling

Loopback Detection (LBD)

iSCSI awareness

L2 Multicast MLD Snooping

IGMP Snooping

PIM Snooping

L3 Features ARP

Loopback interface

UDP helper

IPv6 tunneling

IPv6 Neighbor Discovery (ND)

IGMP Proxy Reporting

VRRP v2/v3

IPv6 Tunneling

IP Interface
