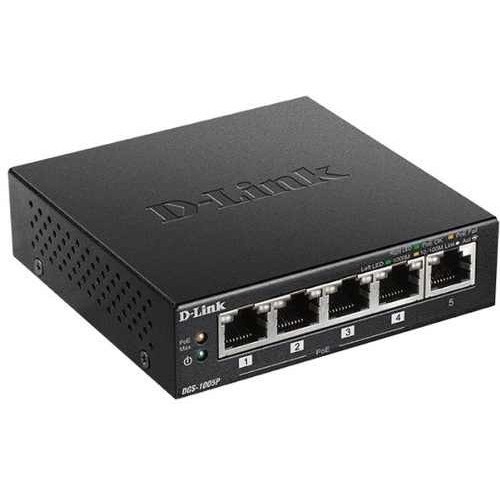

5-Port Desktop Gigabit PoE+ Switch D-Link DGS-1005P

- 5-port UTP 802.3af PoE & 802.3at PoE+ 10/100/1000Mbps Gigabit Unmanaged Switch (Port 1-4 Up to 30W, Power Budget : 60W, H/W: A1, D-Link Green Ethernet & Energy Efficient Ethernet (EEE)).

High-Speed Networking

- Five 10/100/1000 Mbps Gigabit Ethernet ports.

- Full/half-duplex for Ethernet/Fast Ethernet and full-duplex for Gigabit Ethernet speeds.

Reliability

- IEEE 802.3x flow control.

- Store-and-forward switching scheme.

- RoHS-compliant.

Easy Setup

- Plug-and-play installation.

- Auto MDI/MDI-X crossover on all ports.

Fanless and Silent

- Fanless design.

- Noise-free operation.

PoE Functionality

- Four PoE ports.

- IEEE 802.3af/at compliant.

- 60W total power budget.

- Up to 30W power output per PoE port.

Technical Specifications

General

Interfaces 5 x 10/100/1000BASE-T ports

Standards IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3x flow control

IEEE 802.1p QoS

ANSI/IEEE 802.3 NWay auto-negotiation

Media Interface Exchange Auto MDI/MDI-X adjustment on all ports

Performance

Switching Fabric 10 Gbps

Transmission Method Store-and-forward

Data Transfer Rates Gigabit Ethernet: 2000 Mbps (full-duplex)

Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex)

Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex)

Packet Filtering / Forwarding Rates 7.44 Mpps

MAC Address Table 2K entries per device

RAM Buffer 64 KB per device
