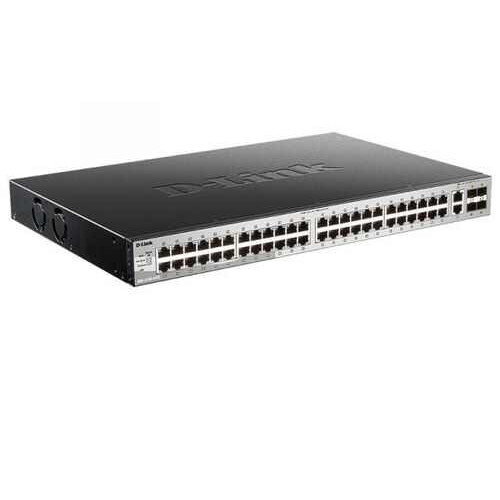

48-port 10/100/1000MbpsLite Layer 3 Stackable Managed Switches D-LINK DGS-3130-54TS

- Layer 3 Lite Stackable Gigabit Managed Switches 48-port 10/100/1000Base-T, 2-port 10GBase-T, 4-port 10G SFP+ (EU 2 round pin + UK 3-pin Power).

- 48 10/100/1000BASE-T non-PoE ports.

- 2 10GBASE-T and 4 10G SFP+ embedded uplink ports.

Reliability

- Redundant power supply (RPS) support.

- Ethernet Ring Protection Switching (ERPS) for single ring topologies.

- Embedded 6 kV surge protection on all Gigabit Ethernet ports.

- IEEE 802.3D/802.1s Spanning Tree.

- Loopback Detection (LBD).

L3 Features

- Static Route.

- RIP.

- RIPng.

Đặc tính kỹ thuật

Model DGS-3130-54TS

Ports 48 x 10/100/1000BASE-T ports

2 x 10GBASE-T ports

4 x 10G SFP+ ports

Optional Redundant Power Supply DPS-500A

Console Port 10/100/1000BASE-T RJ-45 port for out-of-band CLI management

Management Port 10/100/1000BASE-T RJ-45 port for out-of-band IP management

Stacking Ports 4

Stacking Cost 2

USB Ports 1 x USB 2.0 Type A port

Performance

Switching Capacity 216 Gbps

64-Byte Packet Forwarding Rate 161 Mpps

Packet Buffer Memory 4 MB

Physical

MTBF (Hours) 478,258 hours

Acoustics Max: 51.9 dB

Min: 32.7 dB

Heat Dissipation 172.72 BTU/h

Ventilation 2 x Smart fan

Emission (EMI) FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI, CCC

Safety CB, cUL, BSMI, CCC

Power Input 100 to 240 VAC, 50 to 60 Hz
