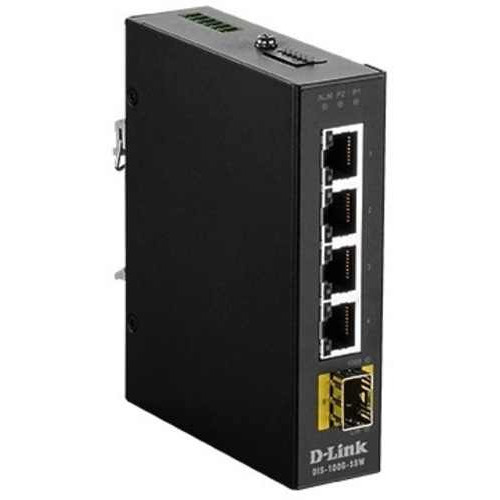

5-port Gigabit Unmanaged Industrial Switch D-Link DIS-100G-5SW

- 4 x 100/1000BaseT ports

- 1 x SFP slots

Adaptable Applications

- SFP ports for long distance connections

- Plug-and-play installation

- Din-rail mounting

Robust and High-Redundancy Design

- Fanless, passive cooling design

- Industrial grade operating temperature

- High EMS endurance

- Ingress protection

- Dual power input for redundant power supplies

Advanced Features

- 9 KB Jumbo Frame

- IEEE 802.3x Flow Control

- IEEE 802.1q Quality of Service (QoS)

- IEEE802.3az Energy Efficient Ethernet

Specifications

Model DIS-100G-5SW

Interfaces

Number of Ports 4 x 100/1000BaseT ports

1 x SFP slots

Port Functions IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab for Gigabit Ethernet

IEEE 802.3z for Gigabit fiber

IEEE 802.3x Flow Control

IEEE 802.3az Energy-Efficient Ethernet (EEE)

Media Interface Exchange Auto-MDI/MDIX adjustment for all twisted pair ports

Performance

Switching Capacity 10 Gbps

Max. Forwarding Rate 7.44 Mpps

MAC Address Table Size Up to 2K entries

Transmission Method Store-and-forward

Jumbo Frame 9 KB

Advanced Features Broadcast/Multicast/Unicast Storm Control

IEEE 802.1p Quality of Service (QoS) - 4 hardware queues per port

Physical

Power input Redundant Input Terminals

Reverse power protection

Input Voltage Range 12 to 58 V DC terminal block dual input

Power Consumption Maximum: 3.82 W
