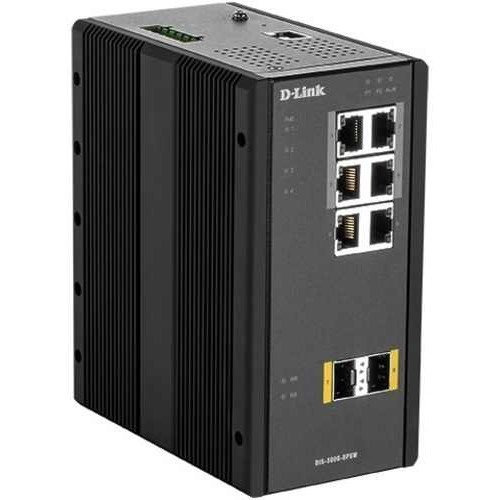

8-port Gigabit Layer 2 Managed Industrial PoE Switch D-Link DIS-300G-8PSW

- 4 x 10/100/1000 BASE-T PoE ports

- 2 x 10/100/1000 BASE-T ports

- 2 x SFP ports

- 1 x RJ-45 Console port

- High redundancy features to provide industrial-grade reliability:

o Dual power inputs

o Ring Protection with <20ms

- Resistant to temperatures between -40 and 75°C

- Power external devices with Power over Ethernet (IEEE 802.3af/at) for simpler installations

- Shock and vibration resistance further boost resilience to outside conditions

- IP30-rated ingress protection provides defense against small objects entering the switch

- Reverse Polarity Protection prevents damage in case of accidental incorrect wiring setup

- Overload Current Protection prevents damage from unexpected power surges

- Quality of Service (QoS) prioritizes network traffic, minimizing the impact of busy bandwidth

- Fanless design for silent operation

- DIN rail or wall mountable

Specifications

Model DIS-300G-8PSW

Interfaces

Hardware Version A1

Number of Ports 4 x 10/100/1000BASE-T PoE ports

2 x 10/100/1000BASE-T ports

2 x SFP ports

1 x RJ-45 Console port

Port Functions IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab for Gigabit Ethernet

IEEE 802.3z for Gigabit fiber

IEEE 802.3af/at Power over Ethernet

IEEE 802.3az-compliant

Media Interface Exchange Auto-MDI/MDIX adjustment for all twisted pair ports

Performance

Switching Capacity 16 Gbps

Max. Forwarding Rate 11.9 Mpps

MAC Address Table Size Up to 8K entries

Transmission Method Store-and-forward

PoE

PoE Standards IEEE 802.3af/at

PoE Capable Ports Ports 1 to 4

PoE Power Budget Max. 120 W

Physical

Power input 54-58 V DC (802.3at PoE+)

48-58 V DC (802.3af PoE)

12-48 V DC (non-PoE)
