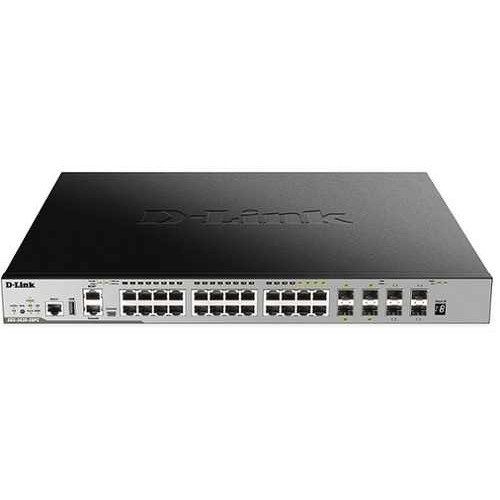

28-Port Gigabit Layer 3 Stackable Managed PoE Switch D-Link DGS-3630-28PC

-20 x 10/100/1000BASE-T PoE ports.

-4 x Combo 10/100/1000BASE-T PoE/SFP ports.

-4 x 10G SFP+ ports.

-/SI: Standard Image.

-Supports IEEE 802.3af/at Power over Ethernet.

-6 kV surge protection on all RJ-45 access ports.

-Switch Resource Management (SRM) for flexible management of system resources.

-Redundant Power Supply (RPS) support.

-MPLS L2VPM/L3 VPN support.

-Full L3 routing protocol support including OSPF, BGP, and ISIS for IPv4/IPv6.

-SDN-enabled switch, compatible with Openflow 1.3.

Technical Specifications

10/100/1000BASE-T PoE ports 20

Combo 10/100/1000BASE-T PoE/SFP ports 4

10G SFP+ ports 4

RJ-45 and Mini-USB port 1

RJ-45 Management port 1

RJ-45 Alarm port 1

USB 2.0 port 1

Switch Capacity 128 Gbps

Max. Packet Forwarding Rate 95.24 Mpps

Store & Forwarding Forwading Yes

Maximum Heat Dissipation 1600.31 BTU/h

Dimension 441mm x 380mm x 44mm

Maximum Power Consumption PoE off: 44.3 W

PoE on: 469.3 W

MTBF 259,222.76 hours

Operating Altitude Up to 2000 M

Operation Humidity 10%-95% RH

Operation Temperature -5-50°C

Standby Power Consumption xxx Watt

Storage Humidity 5% ~ 95% RH

Storage Temperature -40-70°C

Weight xxkg

Power Input AC Input: 100 – 240 VAC, 50-60 Hz

Redundant Power Supply Yes

CPU Speed 1GHz

DRAM Size 1GB (Byte)–DDR3

Flash Memory Size 1GB (Byte)

Packet Buffer Size 4MB

PoE Budget 370 W

Physical Stacking Bandwidth 80 G (support stacking trunk)
