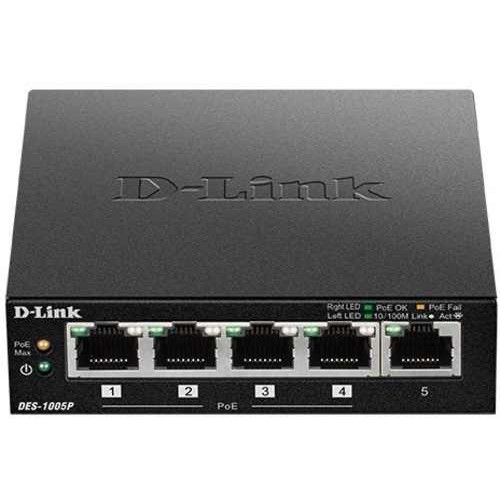

5-Port Fast Ethernet PoE+ Switch D-Link DES-1005P

High-Speed Networking

- Five 10/100 Mbps Ethernet ports

- Full/half-duplex for Ethernet/Fast Ethernet

Reliability

- IEEE 802.3x flow control

- Store-and-forward switching scheme

- RoHS-compliant

Easy Setup

- Plug-and-play installation

- Auto MDI/MDI-X crossover on all ports

Compact Design

- Compact lightweight chassis

- Noise-free operation

PoE Functionality

- Four PoE ports

- IEEE 802.3af/at compliant

- 60 W total power budget

- Up to 30 W power output per PoE port

Specifications

General

Size Desktop

Number of Ports 5 10/100BASE-T ports

Switching Capacity 16 Gbps switching fabric

Media Interface Exchange Auto MDI/MDI-X adjustment on all ports

Switching Fabric 1 Gbps

Transmission Method Store-and-forward

MAC Address Table 2K entries per device

RAM Buffer 64 KB per device

Packet Filtering/ Forwarding Rates 0.744 Mpps

PoE

PoE Standards IEEE 802.3af, IEEE 802.3at

PoE-Capable Ports Ports 1 to 4

Power Budget 60 W (30 W max. per PoE port)

Physical

Dimensions 100 x 98 x 28 mm

Weight 0.26 kg

DC Input External 53.5 V / 1.2 A power adapter

Power Consumption 63.26 W maximum (PoE on)

3.61 W maximum (PoE off)

0.68 W (standby)
