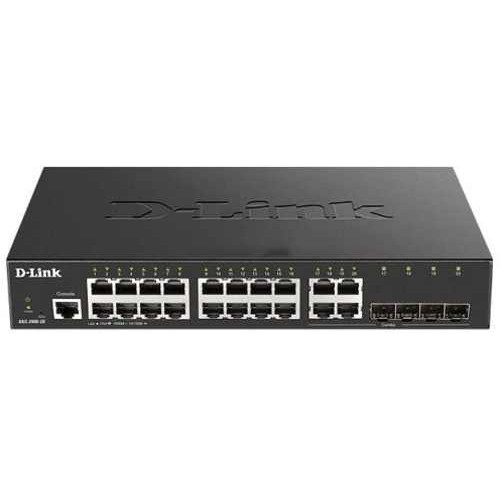

24-port Gigabit Ethernet + 2-Port Gigabit SFP Switch D-Link DGS-2000-26

- 24 x 10/100/1000BASE-T, 2 x 100/1000Mbps GbE/SFP.

- MAC Address: 8K.

- Managed Layer 2.

- Network Cables: UTP Cat.5, Cat.5e (100m max.).

- Switching Capacity: 52Gbps.

- Forwarding Method: Store-and-forward.

Technical Specifications

Hardware Version A1

Interface

Size 19-inch standard rack-mount width

1U height

Interfaces 24 x 10/100/1000BASE-T ports

2 x 100/1000 Mbps GbE/SFP ports

Port Standards & Functions Ports 1 to 24 compliant with IEEE 802.3ab

Console Port RJ-45 Connector

Other Port Standards & Functions • IEEE 802.3i 10BASE-T Ethernet (twisted-pair copper)

• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)

• Auto-negotiation

• IEEE 802.3x Flow Control

• IEEE 802.3z 1000BASE-X Gigabit Fiber

Network Cables UTP Cat. 5, Cat. 5e (100 m max.)

Full/Half-Duplex • Full/half-duplex for 10/100 Mbps speeds

• Full-duplex for 1000 Mbps speed

Media Interface Exchange • Auto MDI/MDIX adjustment for all twisted-pair ports

Performance

Switching Capacity 52 Gbps

Forwarding Method Store-and-forward

MAC Address Table Size 8K entries

MAC Address Update Up to 256 static MAC entries

64-byte Max. Forwarding Rate 77.4 Mpps

CPU Memory 256 MB DDR3

Packet Buffer 4.1 Mbits

Flash Memory 32 MB

Physical/Environmental

MTBF 1,082,534 hours

Acoustic High speed: 50.1 dB(A)

Low speed: 40.4 dB(A)

Heat Dissipation 51.93 TU/hr

Power Input AC Input: 100 to 240 V AC, 50/60 Hz interal universal power supply

Maximum Power Consumption 15.22 W

Standby Power Consumption 5.01 W/100 V

5.06 W/240 V
