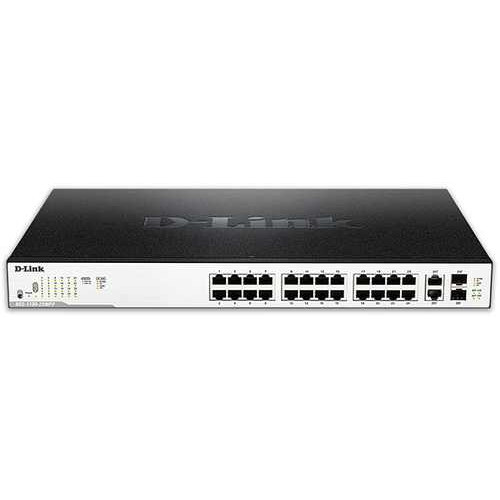

26-Port Gigabit EasySmart (Max) Managed PoE Switch D-Link DGS-1100-26MPP

-24-port UTP 802.3af PoE, 802.3at PoE+, 802.3bt draft uPoE 10/100/1000Mbps, 2-port UTP 10/100/1000Mbps / SFP Combo (Port 1-20 Up-to 30W, Port 21-24 Up-to 75W, Power Budget : 518W, EU 2 round pin+ UK 3-pin Power Cord, H/W : B1, Rackmountable).

-The DGS-1100-26MPP is a range of switches designed to meet the surveillance requirements of small, medium, and enterprise businesses.

-Support for high-powered Pan Tilt Zoom (PTZ) cameras, an automatic Surveillance VLAN, and 6 kV surge protection make the DGS-1100-26MPP ideal for IP surveillance deployments.

-A redesigned interface, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to your surveillance requirements.

Easy to Deployment

-An interactive setup wizard removes the complexity from installing the switch for the first time.

-It allows you to choose the web interface mode (Standard or Surveillance), the IP address allocation method (static or DHCP), and the administrator username and password.

-This completes the initial setup of the switch and automatically configures features such as Loop Detection, DHCP Snooping, SNMP and Surveillance VLAN.

-An informative quick start guide shows you how to use the network diagram, and a network overview is displayed on the next page.

-D-Link and 3rd party devices are automatically detected and shown on the network overview page for easy administration.

Surveillance Traffic Optimization

-The DGS-1100-26MPP supports the automatic Surveillance VLAN feature.

-This automatically detects surveillance devices and puts them into the Surveillance VLAN, segmenting their traffic from the rest of the network.

-The ensures security of the data, but also gives the traffic a higher priority through the switch, reducing the chances of the video freezing or being delayed on live streams.

-A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware and reducing maintenance costs.

Intuitive Web Interface

-A redesigned Surveillance interface makes surveillance features more accessible than ever.

-The choice between Standard and Surveillance modes can be made during switch set up, allowing the user to choose the interface that best suits their requirements.

-A network overview shows which devices are connected to which ports, and ONVIF device support allows the switch to recognize both D-Link and 3rd party IP cameras and Network Video Recorders (NVRs).

-With monitoring, management, and troubleshooting tools built into a single interface, the DGS-1100-26MPP provides everything you need to manage your surveillance network.

Maximum Reliability

-The DGS-1100-26MPP features 6 kV surge protection on all PoE ports to help prevent damage to the network caused by power surges and lightning strikes.

-Faulty electrical cabling, faulty network cabling, and lightning strikes can cause damage to the switch and connected devices.
