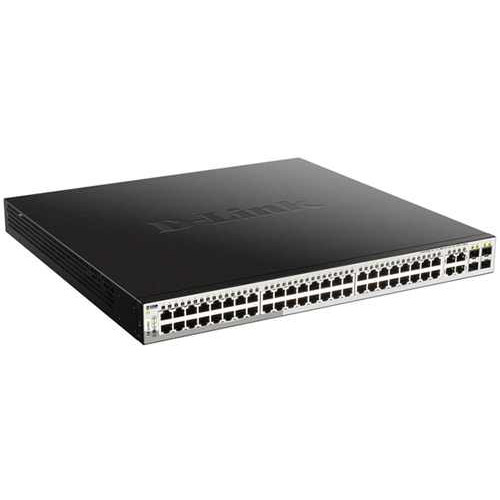

52-Port Web Smart Gigabit Managed PoE Switch D-Link DGS-1210-52P

-48 x 10/100/1000 PoE ports + 4 x Gigabit RJ45/SFP COMBO ports.

-Advanced L2 switching and security features.

-L2+ Static Routing.

-Optional “standard mode” or “surveillance mode” management user interface

-Robust 370W PoE budget.

-The D-Link DGS-1210-52P are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features.

-With all of these features combined, the DGS-1210-52P provides a cost-efficient and flexible solution for expanding any business network.

PoE Support

-Five of the eight models in the DGS-1210-52P support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices.

-Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.

-The switches also support time-based PoE – an option that allows administrators to set a time window that determines when each port’s PoE power is turned on and off.

-All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model.

Advanced Features

-The DGS-1210-52P comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP).

-The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.

-The DGS-1210-52P also supports advanced features such as static routing, with static routing, IP routes are manually entered into a routing table, which allows for communication between different user groups in different VLAN segments in a network. -The switch can directly handle inter VLAN routing using multiple interfaces, making the network run faster and more efficiently.

-Because the switches can manage internal routing, the network router can be assigned to handle external traffic routing only.

-Network maintenance features include loopback detection and cable diagnostics. --Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down switching loops.

-The cable diagnostics feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing for hassle-free diagnostics and maintenance.

Automatic Configuration

The DGS-1210-52P supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic.

-Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.

-Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs.

-Surveillance Mode also includes its own Web UI, making surveillance features easily accessible and simplifying management of your surveillance network.
