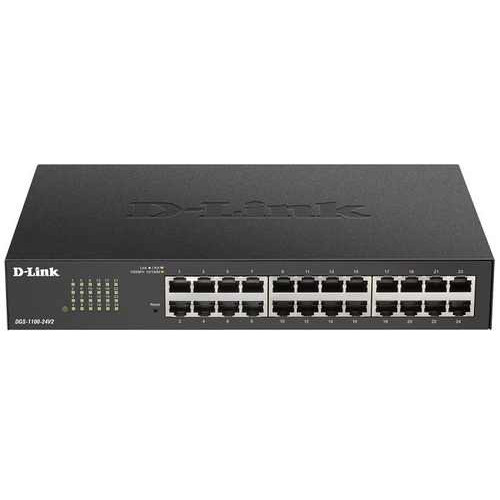

24-Port Gigabit Smart Managed Switch D-Link DGS-1100-24V2

Physical

- 24 x 10/100/1000BASE-T ports

- Fanless design for silent operation

Green Technology

- Link status detection

- IEEE 802.3az Energy-Efficient Ethernet compliant

Advanced Features

- IGMP Snooping

- Bandwidth Control

- IEEE 802.1Q VLAN traffic segregation

- Port-based VLAN

- IEEE 802.1p Quality of Service

- Surveillance VLAN

- Voice VLAN

Management Features

- Client-based utility or web-based GUI

- Built-in SNMP MIB

Đặc tính kỹ thuật

Model DGS-1100-24V2

General

Hardware Version A1

Size 11-inch desktop (rackmount kit included), 1U height

Number of Ports 24 x 10/100/1000 Mbps

Port Functions IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab for Gigabit Ethernet

IEEE 802.3z for Gigabit fiber

IEEE 802.3az compliant

Auto-negotiation

Auto MDI/MDIX

IEEE 802.3x Flow Control supports full-duplex mode

Supports half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps)

Performance

Switching Capacity 48 Gbps

Maximum Forwarding Rate 35.71 Mpps

MAC Address Table Size 8K entries

Packet Buffer 4.1 Mbits

Flash Memory 16 Mbytes

Power Consumption

Standby Mode 4.5 W

Maximum Power Consumption 15.9 W
