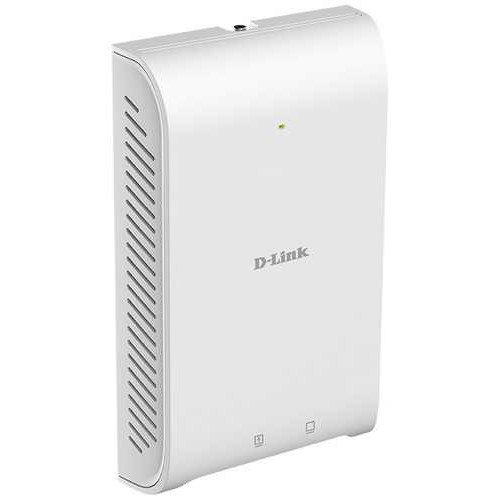

Nuclias Connect AC1200 Wave 2 Wall-Plate Access Point D-Link DAP-2622

- New generation IEEE 802.11ac Wave 2 wireless with high-speed 1200 Mbps throughput

- Powerful management, monitoring, and troubleshooting functionality with Nuclias Connect

- Flexible access through web (HTTP), SSL, SSH and Telnet

- Three LAN ports offer expansive backhaul to your wired network, eliminating bottlenecks at the AP

- Support for Power over Ethernet 802.3at means less wires, for cleaner and easier deployment

- Stay secure with WPA2/WPA™ Personal & Enterprise wireless encryption

- Supports multiple AP modes for performance optimization based on your network’s needs

- MAC address filtering and WLAN partitioning ensure ultimate control of your network

- Captive portal with industry-standard authentication for enhanced access management

- Wall-plate design for installation on Ethernet wall sockets

- Compatible with both US and EU power outlets

- Features a PoE Out port for powering PoE-capable devices and connecting them to the network

- PoE Injector and Power Adapter Not Included.

Specifications

Model DAP-2622

General

Device Interfaces 1 x 10/100/1000 Mbps Gigabit PoE Uplink Port

1 x 10/100/1000 Mbps Gigabit PoE Out Downlink Port

1 x 10/100/1000 Mbps Gigabit Ethernet Downlink Port

LEDs Power/Status

Antennas 2 x internal

Data Signal Rate Up to 1200 Mbps

Functionality

Standards IEEE 802.11a/b/g/n/ac, IEEE 802.3u/ab, IEEE 802.3az Energy-Efficient Ethernet (EEE), IEEE 802.3at Power over Ethernet

Operating Frequency 2.4 to 2.4835 GHz, 5.15 to 5.85 GHz

Security Protocol WPA2/WPA™ Personal/Enterprise, WEP 64/128-bit, SSID broadcast disable, MAC address access control, internal RADIUS server

Software

Network Management Telnet, Secure Telnet (SSH), Web (HTTP), Secure Socket Layer (SSL), Traffic control, D-Link Nuclias Connect

Physical

Power Supply IEEE 802.3at PoE

Max. Power Consumption 9.5 W, 21.5 W (including PoE output)

MTBF > 30,000 hours

Operating Temperature 0°C to 40°C

Storage Temperature -20°C to 65°C

Operating Humidity 10% to 90%

Storage Humidity 5% to 95%

Weight 212g
