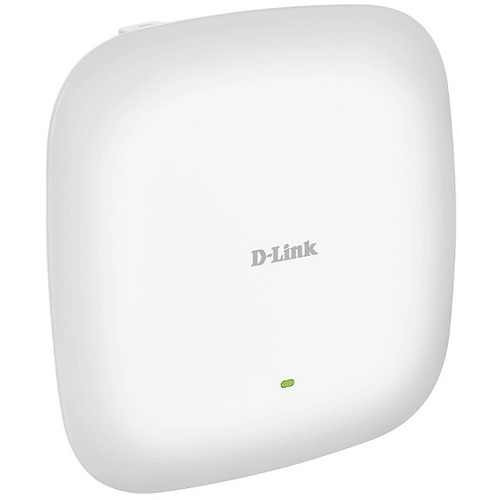

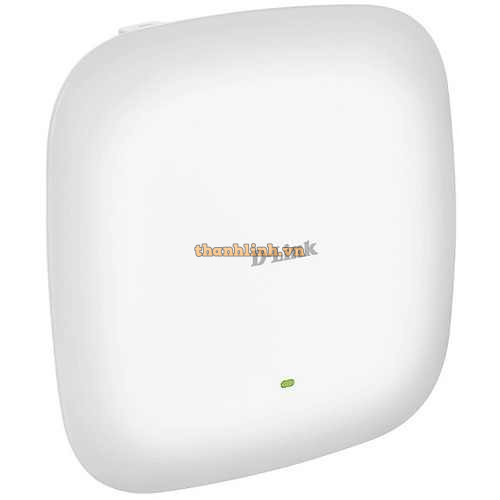

Nuclias Connect AC2200 Wave 2 Tri-Band PoE Access Point D-Link DAP-2720

- Easy to manage with D-Link’s free management software-based solution, Nuclias Connect

- Superior throughput with tri-band transfer speeds up to 400 Mbps in the 2.4 GHz band and 866 Mbps in the 5 GHz bands

- IEEE 802.11a/b/g/n/ac Wave 2 wireless

- 1 x Gigabit LAN port for high-capacity backhaul to the wired network

- Supports Power over Ethernet (802.3at) for simpler installation with less cable clutter

- Supports WPA2™ - Wi-Fi security for more protection

- Supports multiple VLANs for enhanced network management and up to 16 SSID setups

- Quality of Service (QoS) prioritizes time-sensitive traffic for a smoother Wi-Fi experience

- Supports multiple AP modes to ensure optimization based on your network’s needs

- PoE Injector and Power Adapter Not Included.

Specifications

Model DAP-2720

General

Device Interfaces 1 x IEEE 802.11a/b/g/n/ac Wave 2 wireless

1 x 10/100/1000 Mbps Gigabit LAN (supports PoE)

Standards IEEE 802.11a/b/g/n/ac

IEEE 802.3/u/ab/x/az

IEEE 802.3az Energy-Efficient Ethernet (EEE)

IEEE 802.3at Power over Ethernet

Antennas 6 x Internal Antennas

LEDs Power/Status

Operating Frequency 2.4 GHz band: 2.4 to 2.4835 GHz

5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.825 GHz

Maximum Output Power 2.4 GHz band: 26 dBm

5 GHz band: 24 dBm

Data Signal Rate 2.4 GHz band: Up to 400 Mbps

5 GHz band: Up to 866 Mbps per band

Functionality

Network Management D-Link Nuclias Connect

Telnet

Secure Telnet (SSH)

Web (HTTP)

Secure Socket Layer (SSL)

Traffic control

SNMP v1/v2c/v3

Security 128-bit personal wireless encryption

128-bit enterprise wireless encryption

WEP 64/128-bit encryption

SSID Broadcast Disable

MAC Address Access Control

Network Access Protection (NAP)

Internal RADIUS Server

Physical

Power Supply External Power Adapter: 12V / 2.5A

IEEE 802.3at PoE

Max. Power Consumption Adapter Mode: 15.74 W

PoE Mode: 16.08 W
