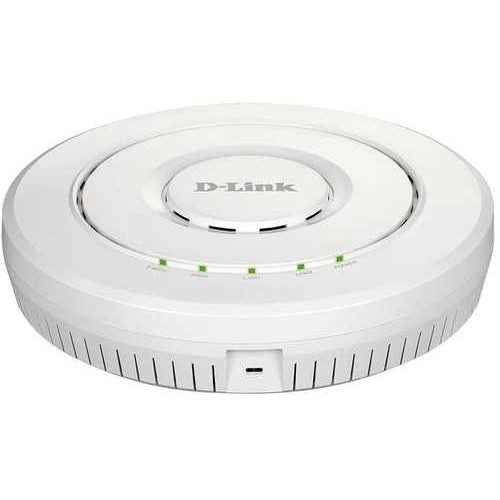

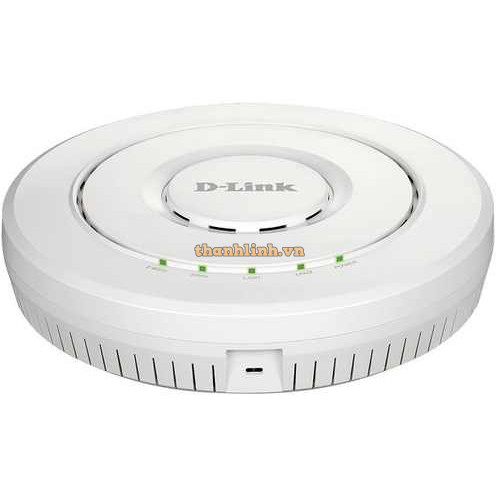

Wireless AC2600 Wave 2 Dual-Band Unified Access Point D-Link DWL-8620AP

- 802.11ac Wave 2, Dual-Band, up to 2.5 Gbps

- 4 Internal Omnidirectional Antennas

- Up to 64 dynamic VLANs per access point

- 802.11k Fast Roaming, MU-MIMO and QoS with WMM

- Wireless Encryption including WPA/WPA2 Personal, WPA/WPA2 Enterprise, MAC address filtering and Rogue AP detection

- Link Aggregation

Specifications

Model DWL-8620AP

General

Hardware Version A1

Wireless Interface IEEE 802.11b/g/n 2.4 GHz wireless

IEEE 802.11/a/n/ac Wave 2 5 GHz wireless

Ethernet Interface 2 x 10/100/1000BASE-T LAN port

Console Port RJ45

MIMO 4 x 4

Data Rate 2.4 GHz - Up to 800 Mbps

5 GHz - Up to 1733 Mbps

Antenna Internal omni-directional antennas

2.4 GHz: 3 dBi

5 GHz: 4 dBi

Operating Frequency 2400 to 2483.5 MHz

5150 to 5850 MHz

Operating Channels 1 to 13 channels for 2.4 GHz band (per country code)

36 to 165 channels for 5 GHz band (per country code)

System Management Web-based user interface (HTTP/HTTPs)

Command-Line Interface (CLI)

Telnet/SSH

Functionality

Advanced Features Auto Channel selection

802.1p Quality of Service (QoS)

Wireless Multimedia (WMM)

Wireless Distribution System (WDS)

Band steering

Airtime Fairness

Link Aggregation

IEEE 802.11kvr Fast Roaming

Management

Operating Mode Standalone mode

Managed mode - Centrally managed by D-Link Wireless Controller

Management Interfaces Web-based User Interface (Web UI)

Telnet/SSH

Command Line Interface (CLI)

SNMP v1/v2c/v3

Security

SSID Security Up to 32 SSIDs, 16 per radio

802.1Q VLAN

Station Isolation
